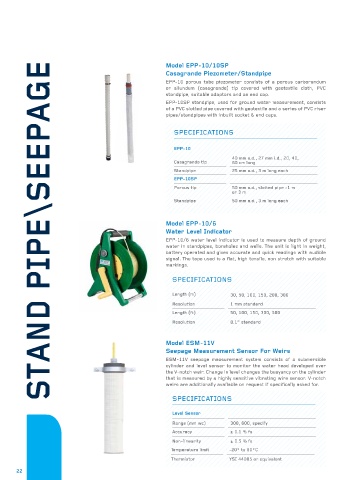

Page 22 - Consolidated Catalog

STAND PIPE\SEEPAGE
Model EPP-10/10SP
Casagrande Piezometer/Standpipe
EPP-10 porous tube piezometer consists of a porous carborundum
or allundum (casagrande) tip covered with geotextile cloth, PVC
standpipe, suitable adaptors and an end cap.
EPP-10SP standpipe, used for ground water measurement, consists
of a PVC slotted pipe covered with geotextile and a series of PVC riser
pipes/standpipes with inbuilt socket & end caps.

SPECIFICATIONS

EPP-10
40 mm o.d., 27 mm i.d., 20, 40,
Casagrande tip 60 cm long
Standpipe 25 mm o.d., 3 m long each
EPP-10SP
Porous tip 50 mm o.d., slotted pipe -1 m
or 3 m
Standpipe 50 mm o.d., 3 m long each

Model EPP-10/6
Water Level Indicator
EPP-10/6 water level indicator is used to measure depth of ground
water in standpipes, boreholes and wells. The unit is light in weight,
battery operated and gives accurate and quick readings with audible
signal. The tape used is a flat, high tensile, non stretch with suitable
markings.
SPECIFICATIONS

Length (m) 30, 50, 100, 150, 200, 300
Resolution 1 mm standard
Length (ft) 50, 100, 150, 300, 500
Resolution 0.1” standard

Model ESM-11V
Seepage Measurement Sensor For Weirs
ESM-11V seepage measurement system consists of a submersible
cylinder and level sensor to monitor the water head developed over
the V-notch weir. Change in level changes the buoyancy on the cylinder
that is measured by a highly sensitive vibrating wire sensor. V-notch
weirs are additionally available on request if specifically asked for.

SPECIFICATIONS

Level Sensor
Range (mm wc) 300, 600, specify
Accuracy ± 0.1 % fs
Non-linearity ± 0.5 % fs
Temperature limit -20° to 80°C
Thermistor YSI 44005 or equivalent
