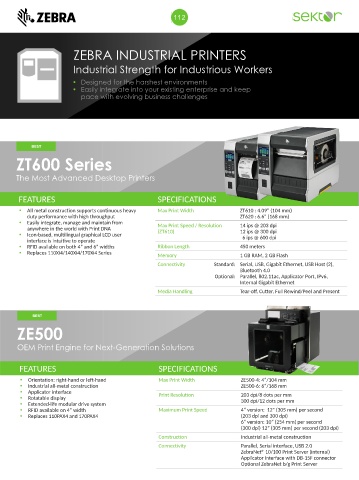

Page 112 - Sektor Product Catalog

112

ZEBRA INDUSTRIAL PRINTERS

Industrial Strength for Industrious Workers

• Designed for the harshest environments
• Easily integrate into your existing enterprise and keep
pace with evolving business challenges

BEST
ZT600 Series

The Most Advanced Desktop Printers

FEATURES SPECIFICATIONS

• All metal construction supports continuous heavy Max Print Width ZT610 : 4.09” (104 mm)
duty performance with high throughput ZT620 : 6.6” (168 mm)
• Easily integrate, manage and maintain from Max Print Speed / Resolution 14 ips @ 203 dpi
anywhere in the world with Print DNA
• Icon-based, multilingual graphical LCD user (ZT610) 12 ips @ 300 dpi
6 ips @ 600 dpi
interface is intuitive to operate
• RFID available on both 4” and 6” widths Ribbon Length 450 meters
• Replaces 110Xi4/140Xi4/170Xi4 Series
Memory 1 GB RAM, 2 GB Flash
Connectivity Standard: Serial, USB, Gigabit Ethernet, USB Host (2),
Bluetooth 4.0
Optional: Parallel, 802.11ac, Applicator Port, IPv6,
Internal Gigabit Ethernet
Media Handling Tear-off, Cutter, Full Rewind/Peel and Present

BEST
ZE500

OEM Print Engine for Next-Generation Solutions

FEATURES SPECIFICATIONS

• Orientation: right-hand or left-hand Max Print Width ZE500-4: 4”/104 mm
• Industrial all-metal construction ZE500-6: 6”/168 mm
• Applicator interface Print Resolution 203 dpi/8 dots per mm
• Rotatable display 300 dpi/12 dots per mm
• Extended-life modular drive system
• RFID available on 4” width Maximum Print Speed 4” version: 12" (305 mm) per second
• Replaces 110PAX4 and 170PAX4 (203 dpi and 300 dpi)
6” version: 10” (254 mm) per second
(300 dpi) 12” (305 mm) per second (203 dpi)
Construction Industrial all-metal construction
Connectivity Parallel, Serial interface, USB 2.0
ZebraNet® 10/100 Print Server (internal)
Applicator interface with DB-15F connector
Optional ZebraNet b/g Print Server
