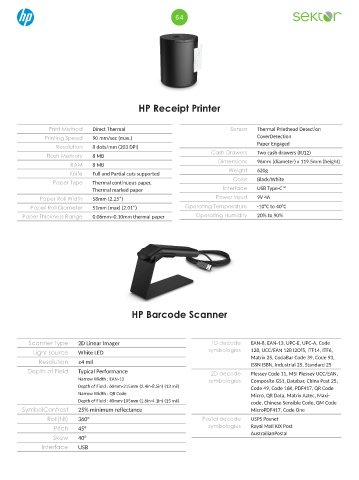

Page 64 - Sektor Product Catalog

64

HP Receipt Printer

Print Method Direct Thermal Sensor Thermal Printhead Detection
Printing Speed 90 mm/sec (max.) CoverDetection
Resolution 8 dots/mm (203 DPI) Paper Engaged
Flash Memory 8 MB Cash Drawers Two cash drawers (RJ12)
RAM 8 MB Dimensions 96mm (diameter) x 119.5mm (height)
Knife Full and Partial cuts supported Weight 620g
Paper Type Thermal continuous paper, Color Black/White
Thermal marked paper Interface USB Type-C™
Paper Roll Width 58mm (2.25”) Power Input 9V 4A
Paper Roll Diameter 51mm (max) (2.01”) Operating Temperature -10°C to 40°C
Paper Thickness Range 0.06mm~0.10mm thermal paper Operating Humidity 20% to 90%

HP Barcode Scanner

Scanner Type 2D Linear Imager 1D decode EAN-8, EAN-13, UPC-E, UPC-A, Code
Light source White LED symbologies 128, UCC/EAN 128 I2Of5, ITF14, ITF6,
Matrix 25, CodaBar Code 39, Code 93,
Resolution ≥4 mil ISSN ISBN, Industrial 25, Standard 25
Depth of Field Typical Performance 2D decode Plessey Code 11, MSI Plessey UCC/EAN,
Narrow Width : EAN-13 symbologies Composite GS1, Databar, China Post 25,
Depth of Field : 60mm-215mm (2.4in-8.5in) (13 mil) Code 49, Code 16K, PDF417, QR Code
Narrow Width : QR Code Micro, QR Data, Matrix Aztec, Maxi-
Depth of Field : 40mm-105mm (1.6in-4.1in) (15 mil) code, Chinese Sensible Code, GM Code
SymbolContrast 25% minimum reflectance MicroPDF417, Code One
Roll(tilt) 360° Postal decode USPS Posnet
Pitch 45° symbologies Royal Mail KIX Post
Skew 40° AustrailianPostal
Interface USB
