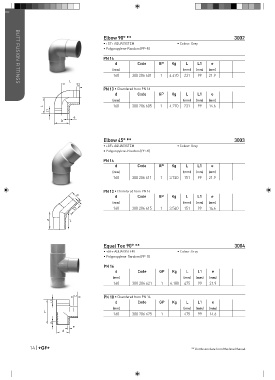

Page 16 - +GF+ PPR Aquasystem Catalogue 2017_Neat

Elbow 90° ** 3002
• +GF+ AQUASYSTEM • Colour: Grey
• Polypropylene-Random (PP-R)

PN 16
d Code GP Kg L L1 e
(mm) (mm) (mm) (mm)
160 300 206 601 1 4.470 231 99 21.9
L
BUTT FUSION FITTINGS
L1
PN 10 • Chamfered from PN 16
d Code GP Kg L L1 e
(mm) (mm) (mm) (mm)
L 160 300 206 605 1 4.270 231 99 14.6
L1
e
D

Elbow 45° ** 3003
• +GF+ AQUASYSTEM • Colour: Grey
• Polypropylene-Random (PP-R)

PN 16
d Code GP Kg L L1 e
(mm) (mm) (mm) (mm)
160 300 206 611 1 3.740 151 99 21.9

PN 10 • Chamfered from PN 16
d Code GP Kg L L1 e
(mm) (mm) (mm) (mm)
160 300 206 615 1 3.540 151 99 14.6

Equal Tee 90° ** 3004
• +GF+ AQUASYSTEM • Colour: Grey
• Polypropylene-Random (PP-R)

PN 16
d Code GP Kg L L1 e
(mm) (mm) (mm) (mm)
160 300 206 621 1 6.180 475 99 21.9

PN 10 • Chamfered from PN 16
d Code GP Kg L L1 e
(mm) (mm) (mm) (mm)
160 300 206 625 1 475 99 14.6

14 | ** Buttfusion data from Machine Manual
