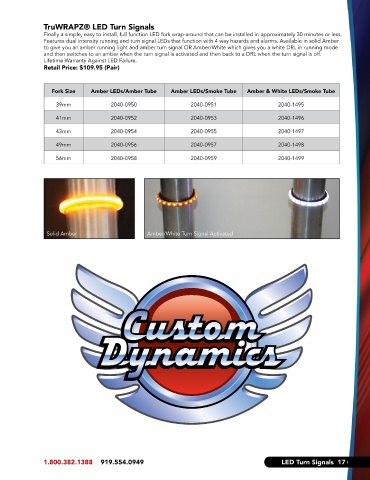

LED Fork Wrap Arounds™ TruWRAPZ® LED Turn Signals
Features: Finally a simple, easy to install, full function LED fork wrap-around that can be installed in approximately 30 minutes or less.
Choice of: Amber or Amber/White LEDs Features dual intensity running and turn signal LEDs that function with 4 way hazards and alarms. Available in solid Amber
Made from 6061 T6 Billet Aluminum to give you an amber running light and amber turn signal OR Amber/White which gives you a white DRL in running mode
Choice of Chrome or Gloss Black and then switches to an amber when the turn signal is activated and then back to a DRL when the turn signal is off.
Anodized Finish Lifetime Warranty Against LED Failure.
Lifetime Warranty Against LED Failure Retail Price: $109.95 (Pair)
Available Sizes: 37mm, 39mm, 41mm,
43mm, 49mm, 56mm
Note: H-D™ BCM Bikes using Wrap
Arounds with solid Amber LEDs Fork Size Amber LEDs/Amber Tube Amber LEDs/Smoke Tube Amber & White LEDs/Smoke Tube
(2011-2020 Softail, 2012-2017 Dynas, 39mm 2040-0950 2040-0951 2040-1495
2014-2020 Touring, 2014-2020 Sport-
sters) Require Adapter 2050-0251 if 41mm 2040-0952 2040-0953 2040-1496
OEM turn signals are removed.
U.S. Patent US 8,876,331 B2; US 8,192,061 43mm 2040-0954 2040-0955 2040-1497
B2; US D605,345 S; US D611,177 S; US
D611,178 S; US D611,187 S 49mm 2040-0956 2040-0957 2040-1498

56mm 2040-0958 2040-0959 2040-1499
37mm 39mm 41mm 43mm 49mm 56mm Retail Price:
Amber LEDs
Clear Lens - Chrome N/A 2020-1210 2020-1214 2020-1218 2020-1222 2020-1226 $249.95
Amber LEDs
Clear Lens - Black N/A 2020-1212 2020-1216 2020-1220 2020-1224 2020-1228 $249.95
Amber LEDs N/A 2020-1211 2020-1215 2020-1219 2020-1223 2020-1227 $249.95
Smoke Lens - Chrome
Amber LEDs
Smoke Lens - Black N/A 2020-1213 2020-1217 2020-1221 2020-1225 2020-1229 $249.95 Solid Amber Amber/White Turn Signal Activated
Amber/White LEDs
Smoke Lens - Chrome 2020-1432 2020-1281 2020-1283 2020-1285 2020-1287 2020-1289 $249.95
Amber/White LEDs
Smoke Lens - Black 2020-1431 2020-1280 2020-1282 2020-1284 2020-1286 2020-1288 $249.95

Eclipze® Wrap Around Module
Features: Adds dual function to solid amber Wrap Arounds and allows them to be BCM compliant.
Note: This is not required and cannot be used with the Amber/White version.
Item: 2050-0251
Retail Price: $24.95 Pair

WARNING: This product can expose you to chemicals including lead and lead components, which is known to the state
of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

®
‹ 16 Everything to Light Up Your Ride! www.customdynamics.com 1.800.382.1388 919.554.0949 LED Turn Signals 17 ›
