Repair open wire or  connection on W/BK wire.  NO  Replace ICM.  Reprogram and learn   password.  Clear codes using speedometer self diagnostics. 4.5 SPEEDOMETER SELF DIAGNOSTICS. Confirm proper operation with no check engine


                                    NO














                      Disconnect coil connector [83].  Measure voltage on Terminal 2  of wire harness. Voltage equal to  battery voltage during first  2 seconds after key ON?  YES  Use Breakout Box and test  light for the next inspection.  Front coil codes: Check between  ICM terminal 6 and ICM terminal 1.  Rear coil codes: Check between ICM terminal 7 and ICM terminal 1. Does test lamp flash when engine is cranked?  See   lamp.






                IGNITION COIL: DTC P1351, P1352, P1354, P1355



                        1                                                                 NO    Replace coil. See Softail   Service Manual.




                                        2   3                   YES  Measure coil resistance.  Front coil codes: Check between coil Terminal 2 and Terminal 3.  Rear coil codes: Check between coil terminal 2 and terminal 1.  Resistance 0.5-0.7 ohms?  2006 Softail: Engine Management (Carbureted)

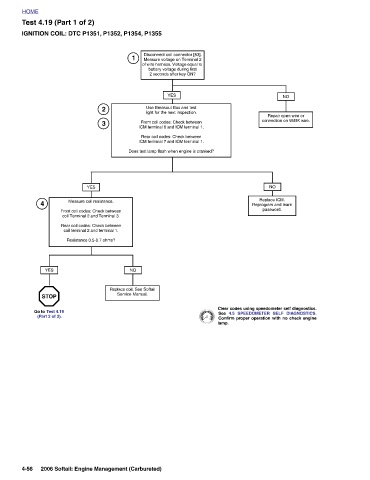

             Test 4.19 (Part 1 of 2)                                                      YES     STOP  Go to  Test 4.19   (Part 2 of 2).









         HOME                                                        4                                                                                  4-56
