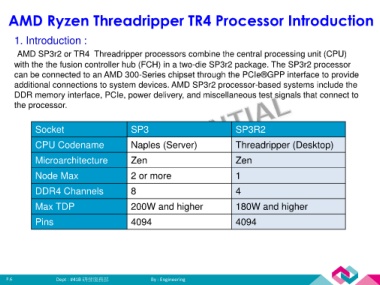

AMD Ryzen Threadripper TR4 Processor Introduction

1. Introduction :

AMD SP3r2 or TR4 Threadripper processors combine the central processing unit (CPU)
with the the fusion controller hub (FCH) in a two-die SP3r2 package. The SP3r2 processor
can be connected to an AMD 300-Series chipset through the PCIe® GPP interface to provide

additional connections to system devices. AMD SP3r2 processor-based systems include the
DDR memory interface, PCIe, power delivery, and miscellaneous test signals that connect to

the processor.

Socket SP3 SP3R2

CPU Codename Naples (Server) Threadripper (Desktop)

Microarchitecture Zen Zen

Node Max 2 or more 1

DDR4 Channels 8 4

Max TDP 200W and higher 180W and higher

Pins 4094 4094
