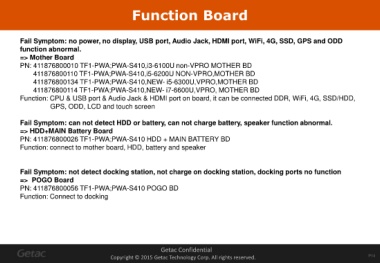

Function Board

Fail Symptom: no power, no display, USB port, Audio Jack, HDMI port, WiFi, 4G, SSD, GPS and ODD
function abnormal.
=> Mother Board
PN: 411876800010 TF1-PWA;PWA-S410,i3-6100U non-VPRO MOTHER BD
411876800110 TF1-PWA;PWA-S410,i5-6200U NON-VPRO,MOTHER BD
411876800134 TF1-PWA;PWA-S410,NEW- i5-6300U,VPRO,MOTHER BD
411876800114 TF1-PWA;PWA-S410,NEW- i7-6600U,VPRO, MOTHER BD
Function: CPU & USB port & Audio Jack & HDMI port on board, it can be connected DDR, WiFi, 4G, SSD/HDD,
GPS, ODD, LCD and touch screen

Fail Symptom: can not detect HDD or battery, can not charge battery, speaker function abnormal.

=> HDD+MAIN Battery Board
PN: 411876800026 TF1-PWA;PWA-S410 HDD + MAIN BATTERY BD
Function: connect to mother board, HDD, battery and speaker

Fail Symptom: not detect docking station, not charge on docking station, docking ports no function
=> POGO Board
PN: 411876800056 TF1-PWA;PWA-S410 POGO BD
Function: Connect to docking
