Page 2 - Z270X-Gaming 7 Rev 1.0 Introduction -170113

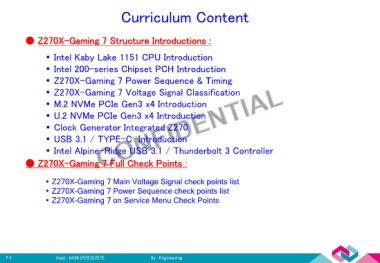

Curriculum Content

● Z270X-Gaming 7 Structure Introductions :

• Intel Kaby Lake 1151 CPU Introduction

• Intel 200-series Chipset PCH Introduction

• Z270X-Gaming 7 Power Sequence & Timing

• Z270X-Gaming 7 Voltage Signal Classification

• M.2 NVMe PCIe Gen3 x4 Introduction

• U.2 NVMe PCIe Gen3 x4 Introduction

• Clock Generator Integrated Z270

• USB 3.1 / TYPE-C Introduction

• Intel Alpine-Ridge USB 3.1 / Thunderbolt 3 Controller

● Z270X-Gaming 7 Full Check Points :

• Z270X-Gaming 7 Main Voltage Signal check points list
• Z270X-Gaming 7 Power Sequence check points list
• Z270X-Gaming 7 on Service Menu Check Points

P.2 Dept : #41B 研發服務部 By : Engineering
