Page 7 - Ashrae manual
P. 7

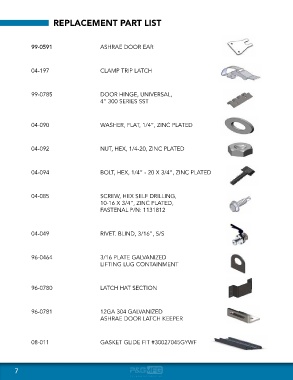

REPLACEMENT PART LIST
99-0591 ASHRAE DOOR EAR
04-197 CLAMP TRIP LATCH
99-0785 DOOR HINGE, UNIVERSAL,
4” 300 SERIES SST
04-090 WASHER, FLAT, 1/4”, ZINC PLATED
04-092 NUT, HEX, 1/4-20, ZINC PLATED
04-094 BOLT, HEX, 1/4” - 20 X 3/4”, ZINC PLATED
04-085 SCREW, HEX SELF DRILLING,
10-16 X 3/4”, ZINC PLATED,
FASTENAL P/N: 1131812
04-049 RIVET. BLIND, 3/16”, S/S
96-0464 3/16 PLATE GALVANIZED
LIFTING LUG CONTAINMENT
96-0780 LATCH HAT SECTION
96-0781 12GA 304 GALVANIZED
ASHRAE DOOR LATCH KEEPER
08-011 GASKET GLIDE FIT #30027045GYWF
7
