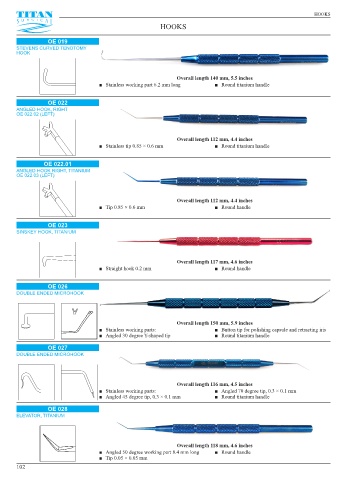

HOOKS

HOOKS

OE 019
STEVENS CURVED TENOTOMY
HOOK

Overall length 140 mm, 5.5 inches
■ Stainless working part 6.2 mm long ■ Round titanium handle

OE 022
ANGLED HOOK, RIGHT
OE 022.02 (LEFT)

Overall length 112 mm, 4.4 inches
■ Stainless tip 0.85 × 0.6 mm ■ Round titanium handle

OE 022.01
ANGLED HOOK RIGHT, TITANIUM
OE 022.03 (LEFT)

Overall length 112 mm, 4.4 inches
■ Tip 0.85 × 0.6 mm ■ Round handle

OE 023
SINSKEY HOOK, TITANIUM

Overall length 117 mm, 4.6 inches
■ Straight hook 0.2 mm ■ Round handle

OE 026
DOUBLE ENDED MICROHOOK

Overall length 150 mm, 5.9 inches
■ Stainless working parts: ■ Button tip for polishing capsule and retracting iris
■ Angled 30 degree Y-shaped tip ■ Round titanium handle

OE 027
DOUBLE ENDED MICROHOOK

Overall length 116 mm, 4.5 inches
■ Stainless working parts: ■ Angled 70 degree tip, 0.3 × 0.1 mm
■ Angled 45 degree tip, 0.3 × 0.1 mm ■ Round titanium handle

OE 028
ELEVATOR, TITANIUM

Overall length 118 mm, 4.6 inches
■ Angled 50 degree working part 8.4 mm long ■ Round handle
■ Tip 0.05 × 0.05 mm
102
