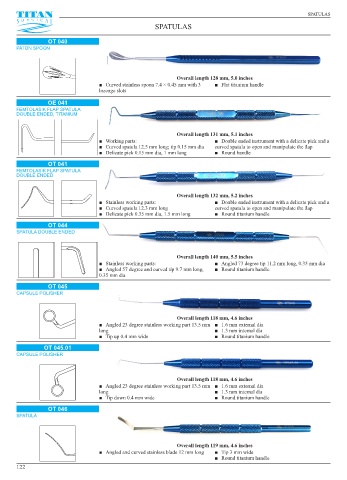

Page 122 - Titan brochure

SPATULAS

SPATULAS

OT 040
PATON SPOON

Overall length 128 mm, 5.0 inches
■ Curved stainless spoon 7.4 × 0.45 mm with 3 ■ Flat titanium handle
lozenge slots
OE 041
FEMTOLASIK FLAP SPATULA
DOUBLE ENDED, TITANIUM

Overall length 131 mm, 5.1 inches
■ Working parts: ■ Double ended instrument with a delicate pick and a
■ Curved spatula 12.5 mm long; tip 0.15 mm dia curved spatula to open and manipulate the flap
■ Delicate pick 0.15 mm dia, 1 mm long ■ Round handle
OT 041
FEMTOLASIK FLAP SPATULA
DOUBLE ENDED

Overall length 132 mm, 5.2 inches
■ Stainless working parts: ■ Double ended instrument with a delicate pick and a
■ Curved spatula 12.3 mm long curved spatula to open and manipulate the flap
■ Delicate pick 0.35 mm dia, 1.5 mm long ■ Round titanium handle
OT 044
SPATULA DOUBLE ENDED

Overall length 140 mm, 5.5 inches
■ Stainless working parts: ■ Angled 73 degree tip 11.2 mm long, 0.35 mm dia
■ Angled 57 degree and curved tip 9.7 mm long, ■ Round titanium handle
0.35 mm dia
OT 045
CAPSULE POLISHER

Overall length 118 mm, 4.6 inches
■ Angled 23 degree stainless working part 13.5 mm ■ 1.6 mm external dia
long ■ 1.3 mm internal dia
■ Tip up 0.4 mm wide ■ Round titanium handle

OT 045.01
CAPSULE POLISHER

Overall length 118 mm, 4.6 inches
■ Angled 23 degree stainless working part 13.5 mm ■ 1.6 mm external dia
long ■ 1.3 mm internal dia
■ Tip down 0.4 mm wide ■ Round titanium handle

OT 046
SPATULA

Overall length 119 mm, 4.6 inches
■ Angled and curved stainless blade 12 mm long ■ Tip 3 mm wide
■ Round titanium handle
122
