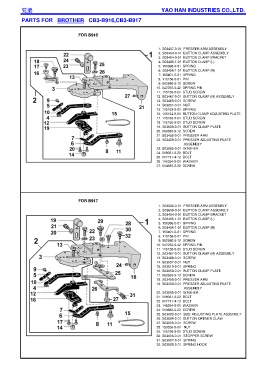

Page 216 - 2017 MASTER CATALOG

YAO HAN INDUSTRIES CO.,LTD.

PARTS FOR BROTHER CB3-B916,CB3-B917

FOR B916

1. S03457-0-01 PRESSER ARM ASSEMBLY
2. S03463-0-01 BUTTON CLAMP ASSEMBLY
3. S03464-0-01 BUTTON CLAMP BRACKET
4. S03465-1-01 BUTTON CLAMP (L)
5. 150398-0-01 SPRING
6. S03466-1-01 BUTTON CLAMP (R)
7. 150401-0-01 SPRING
8. 115156-0-01 PIN
9. 062680-5-12 SCREW
10. 047250-6-42 SPRING PIN
11. 115158-0-01 STUD SCREW
12. S03467-0-01 BUTTON CLAMP (M) ASSEMBLY
13. S03468-0-01 SCREW
14. S03657-0-01 NUT
15. 115163-0-01 SPRING
16. 115164-0-01 BUTTON CLAMP ADJUSTING PLATE
17. 115165-0-01 STUD SCREW
18. 115166-0-01 STUD SCREW
19. S03659-0-01 BUTTON CLAMP PLATE
20. 062680-8-12 SCREW
21. S03458-0-01 PRESSER ARM
22. S03459-0-01 PRESSER ADJUSTING PLATE
ASSEMBLY
23. S03695-0-01 WASHER
24. 018061-0-22 BOLT
25. 017711-4-12 BOLT
26. 146354-0-01 WASHER
27. 014680-6-22 SCREW

FOR B917
1. S03599-0-01 PRESSER ARM ASSEMBLY
2. S03609-0-01 BUTTON CLAMP ASSEMBLY
3. S03464-0-01 BUTTON CLAMP BRACKET
4. S03465-1-01 BUTTON CLAMP (L)
兄弟兄弟兄弟兄弟
5. 150398-0-01 SPRING
6. S03466-1-01 BUTTON CLAMP (R)
7. 150401-0-01 SPRING
8. 115156-0-01 PIN
9. 062680-5-12 SCREW
10. 047250-6-42 SPRING PIN
11. 115158-0-01 STUD SCREW
12. S03467-0-01 BUTTON CLAMP (M) ASSEMBLY
13. S03468-0-01 SCREW
14. S03657-0-01 NUT
15. S03610-0-01 SPRING
16. S03659-0-01 BUTTON CLAMP PLATE
17. 062680-8-12 SCREW
18. S03458-0-01 PRESSER ARM
19. S03459-0-01 PRESSER ADJUSTING PLATE
ASSEMBLY
20. S03695-0-01 WASHER
21. 018061-0-22 BOLT
22. 017711-4-12 BOLT
23. 146354-0-01 WASHER
24. 014680-6-22 SCREW
25. S03600-0-01 SIZE ADJUSTING PLATE ASSEMBLY
26. S03604-0-01 BUTTON OPENER CLAW
27. S03605-0-01 SCREW
28. 150556-0-01 NUT
29. 115166-0-01 STUD SCREW
30. S03606-0-01 STOPPER SCREW
31. S03607-0-01 SPRING
32. S03608-0-01 SPRING HOOK
