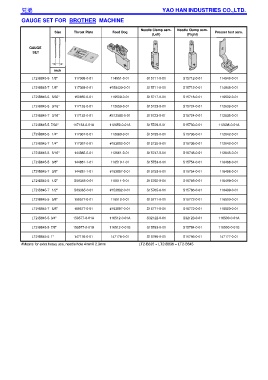

Page 267 - 2017 MASTER CATALOG

YAO HAN INDUSTRIES CO.,LTD.

GAUGE SET FOR BROTHER MACHINE

Needle Clamp asm. Needle Clamp asm.
Size Throat Plate Feed Dog Presser foot asm.
(Left) (Right)

GAUGE
SET

inch
LT2-B845-5 1/8" 117369-0-01 114951-0-01 S15711-0-01 S15712-0-01 114948-0-01

LT2-B845-7 1/8" 117369-0-01 #158430-0-01 S15711-0-01 S15712-0-01 114948-0-01
LT2-B845-5 5/32" 150850-0-01 116509-0-01 S15717-0-01 S15718-0-01 116502-0-01

LT2-B845-5 3/16" 117133-0-01 112659-0-01 S15723-0-01 S15724-0-01 112638-0-01

LT2-B845-7 3/16" 117133-0-01 #S13588-0-01 S15723-0-01 S15724-0-01 112638-0-01
LT2-B845-5 7/32" 117133-0-01A 112659-0-01A S15729-0-01 S15730-0-01 112638-0-01A

LT2-B845-5 1/4" 117367-0-01 112660-0-01 S15735-0-01 S15736-0-01 112642-0-01
LT2-B845-7 1/4" 117367-0-01 #153882-0-01 S15735-0-01 S15736-0-01 112642-0-01

LT2-B845-5 5/16" 144882-0-01 112661-0-01 S15747-0-01 S15748-0-01 112645-0-01
LT2-B845-5 3/8" 144881-1-01 116510-1-01 S15753-0-01 S15754-0-01 116498-0-01

LT2-B845-7 3/8" 144881-1-01 #153887-0-01 S15753-0-01 S15754-0-01 116498-0-01

LT2-B845-5 1/2" S09365-0-01 116511-0-01 S15765-0-01 S15766-0-01 116499-0-01
LT2-B845-7 1/2" S09365-0-01 #153892-0-01 S15765-0-01 S15766-0-01 116499-0-01

LT2-B845-5 5/8" 159577-0-01 116512-0-01 S15771-0-01 S15772-0-01 116500-0-01
LT2-B845-7 5/8" 159577-0-01 #153897-0-01 S15771-0-01 S15772-0-01 116500-0-01

LT2-B845-5 3/4" 159577-0-01A 116512-0-01A S32122-0-01 S32123-0-01 116500-0-01A
兄弟兄弟兄弟兄弟
LT2-B845-5 7/8" 159577-0-01B 116512-0-01B S15783-0-01 S15784-0-01 116500-0-01B
LT2-B845-5 1" 147176-0-01 147178-0-01 S15795-0-01 S15796-0-01 147177-0-01
#Means for extra heavy use, needle hole 4mmX 2.3mm LT2-B835 = LT2-B836 = LT2-B845
