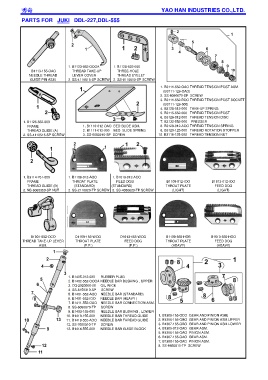

Page 285 - 2017 MASTER CATALOG

YAO HAN INDUSTRIES CO.,LTD.

PARTS FOR JUKI DDL-227,DDL-555

1. B1123-552-OOOA 1. B1128-522-000
B1113-155-OAO THREAD TAKE-UP THREE-HOLE
NEEDLE THREAD LEVER COVER THREAD EYELET
GUIDE PIN ASM. 2. SS-4110515-SP SCREW 2. SS-8110510-SP SCREW
1. B3111-552-OAO THREAD TENSION POST ASM.
(B3111-126-OAO)
2. SS-8090670-SP SCREW
3. B3111-552-BOO THREAD TENSION POST SOCKET
(B3111-126-000)
4. B3128-012-000 TAKE-UP SPRING
5. B3115-552-000 THREAD TENSION POST
6. B3126-012-000 THREAD TENSION DISC
1. B1126-552-000 7. B3132-552-000 PRESSER
FRAME 1. B1110-012-OAO BED SLIDE ASM. 8. B3129-012-AOO THREAD TENSION SPRING
THREAD GUIDE (A) 2. B1111-012-000 BED SLIDE SPRING 9. B3120-125-000 THREAD ROTATION STOPPER
2. SS-4110515-SP SCREW 3. SS-6060210-SP SCREW 10. B3116-125-000 THREAD TENSION NUT

1. B3114-761-000 1. B1109-012-AOO 1. B1613-012-AOO
FRAME THROAT PLATE FEED DOG B1109-012-IOO B1613-012-IOO
THREAD GUIDE (B) (STANDARD) (STANDARD) THROAT PLATE FEED DOG
2. NS-6060350-SP NUT 2. SS-2110920-TP SCREW 2. SS-4080620-TP SCREW (LIGHT) (LIGHT)

秀奇秀奇秀奇秀奇

B1901-552-OCO D1109-155-WOO D1613-155-WOO B1109-555-HOB B1613-555-HOO
THREAD TAKE-UP LEVER THROAT PLATE FEED DOG THROAT PLATE FEED DOG
ASM. (P.P.) (P.P.) (HEAVY) (HEAVY)

1. B1405-012-000 RUBBER PLUG
2. B1402-552-OOOA NEEDLE BAR BUSHING , UPPER
3. CQ-2020000-00 OIL WICK
4. SS-8150310-SP SCREW
5. B1401-552-AOO NEEDLE BAR (STANDARD)
6. B1401-552-IOO NEEDLE BAR (HEAVY )
7. B1411-552-OAO NEEDLE BAR CONNECTION ASM.
8. SS-6090670-TP SCREW
9. B1403-155-000 NEEDLE BAR BUSHING , LOWER
10. B1419-155-000 NEEDLE BAR THREAD GUIDE 1. B1306-155-OCO GEAR AND PINION ASM.
11. B1418-552-AOO NEEDLE BAR THREAD GUIDE 2. B1306-155-OBO GEAR AND PINION ASM.UPPER
12. SS-7080510-TP SCREW 3. B1307-155-OBO GEAR AND PINION ASM.LOWER
13. B1414-555-000 NEEDLE BAR GUIDE BLOCK 4. B1305-012-OAO GEAR ASM.
5. B1306-155-OAO PINION ASM.
6. B1307-155-OAO GEAR ASM.
7. B1308-155-OAO PINION ASM.
8. SS-8660810-TP SCREW
