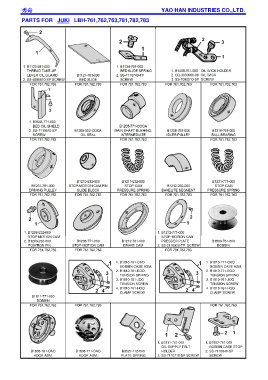

Page 294 - 2017 MASTER CATALOG

YAO HAN INDUSTRIES CO.,LTD.

PARTS FOR JUKI LBH-761,762,763,781,782,783

1. B1123-581-000 1. B1134-761-000
THREAD TAKE-UP BED SLIDE SPRING 1. B1409-761-000 OIL WICK HOLDER
LEVER OIL GUARD B1121-761-000 2. SS-7110740-TP 2. CQ-3030000-00 OIL WICK
2. SS-4090610-SP SCREW BED SLIDE SCREW 3. SS-7090510-SP SCREW
FOR 781,782,783 FOR 781,782,783 FOR 781,782,783 FOR 761,762,763 FOR 761,762,763

1. B3543-771-000
BED OIL SHIELD B1205-771-OOOA
2. SS-7110510-SP B1208-552-OOOA MAIN SHAFT BUSHING, B1208-761-000 B1210-761-000
SCREW OIL SEAL INTERMEDIATE IDLER PULLEY BALL BEARING
FOR 781,782,783 FOR 761,762,763 FOR 781,782,783

B1210-232-000 B1211-232-000 B1231-771-000
B1251-781-000 STOP-MOTION CAM PIN STOP CAM B1212-232-000 STOP CAM
DRIVING PULLEY SLIDE BLOCK PRESSURE SPRING BAKELITE SEGMENT PRESSURE SPRING
FOR 761,762,763 FOR 781,782,783 FOR 761,762,763 FOR 781,782,783 FOR 761,762,763

秀奇秀奇秀奇秀奇

1. B1208-232-000 1. B1212-771-000
STOP-MOTION CAM STOP-MOTION CAM
2. B1209-232-000 B1208-771-000 B1212-761-000 PRESSER PLATE B1809-761-000
POSITION PIN STOP-MOTION CAM BRAKE CAM 2. SS-2110920-TP SCREW BOBBIN
FOR 781,782,783 FOR 761,762,763 FOR 781,782,783

1. B1810-761-OAO 1. B1810-771-OAO
BOBBIN CASE ASM. BOBBIN CASE ASM.
2. B1810-761-EOO 2. B1810-771-EOO
TENSION SPRING TENSION SPRING
3. B1810-761-JOO 3. B1810-761-JOO
TENSION SCREW TENSION SCREW
4. B1810-761-HOO 4. B1810-761-HOO
CLAMP SCREW CLAMP SCREW
B1811-771-000
BOBBIN
FOR 761,762,763 FOR 781,782,783 FOR 761,762,763

1. B1811-761-000 1. B1807-761-000
OIL SUPPLY FELT BOBBIN CASE STOP
B1808-761-OAO B1808-771-OAO B3527-112-000 HOLDER 2. SS-7110840-SP
HOOK ASM. HOOK ASM. PLATE SPRING 2. SS-7110710-SP SCREW SCREW
