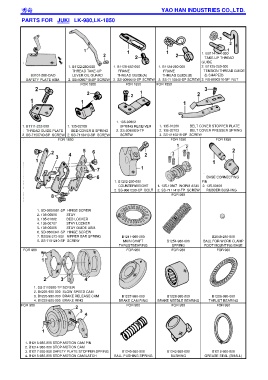

Page 320 - 2017 MASTER CATALOG

YAO HAN INDUSTRIES CO.,LTD.

PARTS FOR JUKI LK-980,LK-1850

1. B3114-771-000
TAKE-UP THREAD
GUIDE
1. B1122-280-000 1. B1126-552-000 1. B1124-280-000 2. B1125-280-000
THREAD TAKE-UP FRAME FRAME TENSION THREAD GUIDE
B3101-280-OAO LEVER OIL GUARD THREAD GUIDE(A) THREAD GUIDE(B) (L-SHAPED)
SAFETY PLATE ASM. 2. SS-4090715-SP SCREW 2. SS-3090610-SP SCREW 2. SS-7110840-SP SCREW 3. NS-6090310-SP NUT
FOR 1850 FOR 1850 FOR 1850

1. 135-02802
1. B1111-232-000 1. 135-02109 SPRING RECEIVER 1. 135-01200 BELT COVER STOPPER PLATE
THREAD GUIDE PLATE BED COVER B SPRING 2. SS-2090820-TP 2. 135-02703 BELT COVER PRESSER SPRING
2. SS-7150740-SP SCREW 2. SS-7110410-SP SCREW SCREW 3. SS-4110815-SP SCREW
FOR 1850 FOR 1850 FOR 1850

1. B1107-280-000
BASE CONNECTING
1. B1202-280-000 PIN
COUNTERWEIGHT 1. 135-10367 WORM ASM. 2. 135-00400
2. SS-9661230-CP BOLT 2. SS-7111410-TP SCREW RUBBER BUSHING
FOR 980

1. SD-0800681-SP HINGE SCREW
2. 135-00608 STAY
3. 135-01002 BED LOCKER
秀奇秀奇秀奇秀奇
4. 135-00707 STAY LOCKER
5. 135-00855 STAY GUIDE ASM.
6. SD-0800341-SP HINGE SCREW
7. B2008-372-000 NIPPER BAR SPRING B1211-980-000 B2549-280-000
8. SS-7151210-SP SCREW MAIN SHAFT B1254-980-000 BALL FOR WORK CLAMP
THRUSTBEARING SPRING FOOT MOUNTING BASE
FOR 980 FOR 980 FOR 980 FOR 980

1. SS-2110920-TP SCREW
2. B1225-980-000 SLOW SPEED CAM
3. B1226-980-000 BRAKE RELEASE CAM B1227-980-000 B1228-980-000 B1229-980-000
4. B1222-980-000 BRAKE RING BRAKE CAM RING BRAKE NEEDLE BEARING THRUST BEARING
FOR 980 FOR 980 FOR 980 FOR 980

1. B1216-980-000 STOP-MOTION CAM PIN
2. B1214-980-000 STOP-MOTION CAM
3. B1217-280-000 SAFETY PLATE STOPPER SPRING B1240-980-000 B1243-980-000 B1218-980-000
4. B1215-980-000 STOP-MOTION CAM LATCH BALL PUSHING SPRING BUSHING GREASE SEAL (SMALL)
