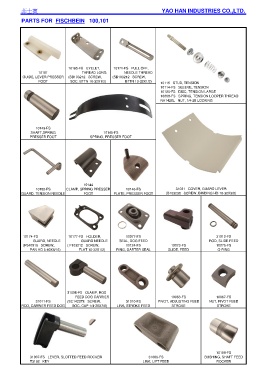

Page 33 - 2017 MASTER CATALOG

菲士賓 YAO HAN INDUSTRIES CO.,LTD.

PARTS FOR FISCHBEIN 100,101

10165-FS EYELET, 10171-FS PULL OFF,
10161 THREAD LONG NEEDLE THREAD
GUIDE, LEVER PRESSER (SB103212 SCREW, (SB103212 SCREW,
FOOT SOC. BTTN 10-32X1/2) BTTN 10-32X1/2) 10115 STUD, TENSION
10114-FS SLEEVE, TENSION
10120-FS DISC, TENSION LARGE
10008-FS SPRING, TENSION LOOPER THREAD
NH1428L NUT, 1/4-28 LOCKING

10143-FS
SHAFT,SPRING 10145-FS
PRESSER FOOT SPRING, PRESSER FOOT

10144
10188-FS CLAMP, SPRING PRESSER 10146-FS 31031 COVER, GUARD LEVER
GUARD, TENSION NEEDLE FOOT PLATE, PRESSER FOOT (B103238 SCREW, BINDING HD 10-32X3/8)

10174-FS 10177-FS HOLDER, 10077-FS 31012-FS
GUARD, NEEDLE GUARD NEEDLE SEAL, DOG FEED ROD, SLIDE FEED
(P540916 SCREW, ( F103212 SCREW, 10124-FS 10073-FS 10075-FS
PAN HD 5-40X9/16) FLAT 10-32X1/2) RING, GARTER SEAL SLIDE, FEED O-RING

31008-FS CLAMP, ROD
FEED DOG CARRIER 10068-FS 10067-FS
31011-FS (SC142078 SCREW, 31010-FS PIVOT, ADJUSTING FEED NUT, PIVOT FEED
ROD, CARRIER FEED DOG SOC. CAP 1/4-20X7/8) LINK, STROKE FEED STROKE STROKE

10109-FS
31007-FS LEVER, SLOTTED FEED ROCKER 31009-FS BUSHING, SHAFT FEED
T3192 KEY LINK, LIFT FEED ROCKER
