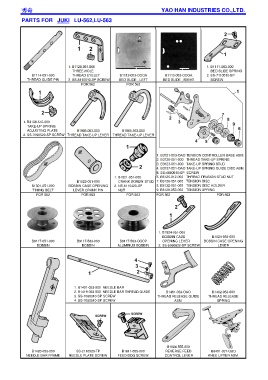

Page 344 - 2017 MASTER CATALOG

YAO HAN INDUSTRIES CO.,LTD.

PARTS FOR JUKI LU-562,LU-563

1. B1128-051-000 1. B1111-563-000
THREE-HOLE BED SLIDE SPRING
B1114-051-000 THREAD EYELET B1112-053-OOOA B1113-053-OOOA 2. SS-7110510-SP
THREAD GUIDE PIN 2. SS-8110510-SP SCREW BED SLIDE , LEFT BED SLIDE , RIGHT SCREW
FOR 562 FOR 563

1. B3138-512-000
TAKE-UP SPRING
ADJUSTING PLATE B1905-053-000 B1905-563-000
2. SS-7090520-SP SCREW THREAD TAKE-UP LEVER THREAD TAKE-UP LEVER

1. B3121-053-OAO TENSION CONTROLLER BASE ASM.
2. B3128-051-000 THREAD TAKE-UP SPRING
3. B3123-051-000 TAKE-UP SPRING STUD
4. B3137-051-OAO TAKE-UP SPRING GUIDE DISC ASM.
5. SS-4080610-SP SCREW
1. B1821-051-000 6. B3125-012-000 THREAD TENSION STUD NUT
B1823-051-000 CRANK SCREW STUD 7. B3126-051-000 TENSION DISC
B1301-051-000 BOBBIN CASE OPENING 2. NS-6110420-SP 8. B3132-051-000 TENSION DISC HOLDER
TIMING BELT LEVER CRANK PIN NUT 9. B3129-053-000 TENSION SPRING
FOR 562 FOR 563 FOR 563 FOR 562 FOR 563

秀奇秀奇秀奇秀奇

1. B1824-051-000
BOBBIN CASE B1824-563-000
B9117-051-000 B9117-563-000 B9117-563-OOOP OPENING LEVER BOBBIN CASE OPENING
BOBBIN BOBBIN ALUMINUM BOBBIN 2. SS-6090620-SP SCREW LEVER

1. B1401-053-000 NEEDLE BAR
2. B1419-053-000 NEEDLE BAR THREAD GUIDE B1461-053-OAO B1462-053-000
3. SS-7060310-SP SCREW THREAD RELEASE GUIDE THREAD RELEASE
4. SS-7080510-SP SCREW ASM. SPRING

B1624-555-000
B1420-053-000 SS-2110920-TP B1611-055-000 REVERSE FEED B3401-027-OBO
NEEDLE BAR FRAME NEEDLE PLATE SCREW FEED DOG SCREW CONTROL LEVER KNEE LIFTER ASM.
