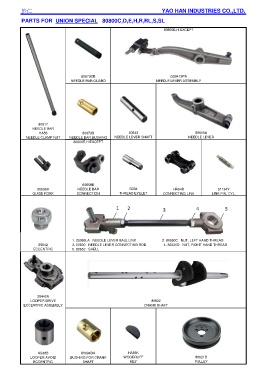

Page 43 - 2017 MASTER CATALOG

於仁 YAO HAN INDUSTRIES CO.,LTD.

PARTS FOR UNION SPECIAL 80800C,D,E,H,R,RL,S,SL

80800E,H EXCEPT

80673CB G29479PA
NEEDLE BAR GUARD NEEDLE LEVER ASSEMBLY

80617
NEEDLE BAR
HA56 80673B 80643 80615A
NEEDLE CLAMP NUT NEEDLE BAR BUSHING NEEDLE LEVER SHAFT NEEDLE LEVER
80800E,H EXCEPT

80659B
80636A NEEDLE BAR G334 HA54B 51134Y
GUIDE FORK CONNECTION THREAD EYELET CONNECTING LINK LINK PIN, CYL.

1 2 3 4 5

1. 29066LA NEEDLE LEVER BALL LINK 2. 80630C NUT, LEFT HAND THREAD
80642 3. 80630 NEEDLE LEVER CONNECTING ROD 4. 80630D NUT, RIGHT HAND THREAD
ECCENTRIC 5. 80652 SHELL

29442N
LOOPER DRIVE 80822
ECCENTRIC ASSEMBLY CRANK SHAFT

AS38B 80694DA HA66K
LOOPER AVOID BUSHING FOR CRANK WOODRUFF 80621B
ECCENTRIC SHAFT KEY PULLEY
