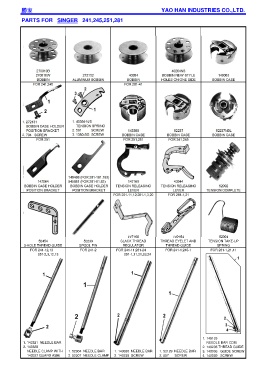

Page 569 - 2017 MASTER CATALOG

YAO HAN INDUSTRIES CO.,LTD.

PARTS FOR SINGER 241,245,251,281

270010B 40264NS
270010W 272152 40264 BOBBIN NEW STYLE 149063
BOBBIN ALUMINUM BOBBIN BOBBIN HOLES ON ONE SIDE BOBBIN CASE
FOR 241,245 FOR 281-41

1. 272131 1. 40394-N/S
BOBBIN CASE HOLDER TENSION SPRING
POSITION BRACKET 2. 591 SCREW 143390 52237 52237NBL
2. 704 SCREW 3. 1380-SG SCREW BOBBIN CASE BOBBIN CASE BOBBIN CASE
FOR 251 FOR 251,281 FOR 241,245

149488 (FOR 281-181,183)
147064 545881 (FOR 281-81,83) 147160 43944
BOBBIN CASE HOLDER BOBBIN CASE HOLDER TENSION RELEASING TENSION RELEASING 52092
POSITION BRACKET POSITION BRACKET LEVER LEVER TENSION COMPLETE
FOR 251-11,12;281-1,3,20 FOR 281-1,21

勝家勝家勝家勝家

147166 149154 52394
52454 52239 SLACK THREAD THREAD EYELET AND TENSION TAKE-UP
3-HOLE THREAD GUIDE SPOOL PIN REGULATOR THREAD GUIDE SPRING
FOR 241-12,13 FOR 241-2 FOR 241-11;281-24 FOR 241-1;245-1 FOR 281-1,21,41
251-2,3,12,13 251-1,11,21,23,24

1. 149133
1. 143321 NEEDLE BAR NEEDLE BAR COM.
2. 143328 2. 149235 THREAD GUIDE
NEEDLE CLAMP WITH 1. 52304 NEEDLE BAR 1. 143335 NEEDLE BAR 1. 52129 NEEDLE BAR 3. 140036 GUIDE SCREW
143327 GUARD ASM. 2. 52307 NEEDLE CLAMP 2. 140239 SCREW 2. 857 SCREW 4. 140239 SCREW
