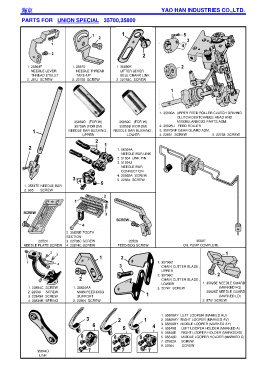

Page 614 - 2017 MASTER CATALOG

YAO HAN INDUSTRIES CO.,LTD.

PARTS FOR UNION SPECIAL 35700,35800

1. 35864F 1. 35870 1. 35880K
NEEDLE LEVER NEEDLE THREAD LIFTER LEVER
THREAD EYELET TAKE-UP BELL CRANK LINK
2. J87J SCREW 2. 22768 SCREW 2. 22758C SCREW

1. 35800A UPPER FEED ROLLER CLUTCH DRIVING
CLUTCH DEATCHABLE HEAD AND
35859D (FOR W) 35859C (FOR W) MISCELLANEOUS PARTS ASM.
35759A (FOR DM) 35859B (FOR DM) 2. 35826U FEED ROLLER
NEEDLE BAR BUSHING , NEEDLE BAR BUSHING , 3. 35875NP GEAR GUARD ASM.
UPPER LOWER 4. 22851 SCREW 5. 22738 SCREW

1. 56354A
NEEDLE BAR LINK
2. 51054 LINK PIN
3. 51254J
NEEDLE BAR
CONNECTION
4. 22562A SCREW
5. 22564 SCREW
1. 35817E NEEDLE BAR
2. 605 SCREW

海京海京海京海京
1. 35826 TOOTH SECTION
2. 35826E TOOTH
SECTION
22524 3. 22738C SCREW 22528 35897
NEEDLE PLATE SCREW 4. 22874C SCREW FEED DOG SCREW OIL PUMP COMPLETE

1. 35796B
CHAIN CUTTER BLADE ,
UPPER
2. 35796C
CHAIN CUTTER BLADE ,
LOWER 1. 35825E NEEDLE GUARD
1. 22894C SCREW 1. 35834AA 3. 22747 SCREW (MARKED FQ)
2. 22599 SCREW MAIN FEED DOG 35825Z NEEDLE GUARD
3. 22845A SCREW SUPPORT (MARKED LD)
4. 35830K SPRING 2. 22804 SCREW 2. 87U SCREW

1. 35808AY LEFT LOOPER (MARKED AU)
2. 35809AY RIGHT LOOPER (MARKED AV)
3. 35809BY MIDDLE LOOPER (MARKED AY)
4. 35848B LEFT LOOPER HOLDER (MARKED A)
5. 35848E RIGHT LOOPER HOLDER (MARKED D)
6. 35848D MIDDLE LOOPER HOLDER (MARKED C)
7. 22562A SCREW
8. 22564 SCREW
35844D
LINK
