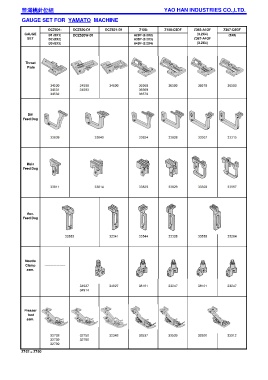

Page 628 - 2017 MASTER CATALOG
P. 628
YAO HAN INDUSTRIES CO.,LTD.
GAUGE SET FOR YAMATO MACHINE
DCZ501- DCZ520-D1 DCZ521-D1 Z100- Z100-C5DF Z365-A4GF Z367-C5GF
GAUGE D1 (0X1) DCZ520W-D1 A2DF (3.2X2) (3.2X4) (5X5)
SET D2 (0X2) A3DF (3.2X3) Z367-A4GF
D3 (0X3) A4DF (3.2X4) (3.2X4)
Throat
雅滿桃針位組 雅滿桃針位組 雅滿桃針位組 雅滿桃針位組
Plate
34530 34598 34600 36568 36590 36570 36590
34531 34593 36569
34532 36570
Diff
Feed Dog
33839 33840 33824 33828 33307 33315
Main
Feed Dog
33811 33814 33825 33829 33308 33557
Aux.
Feed Dog
32883 32341 33544 33328 33558 35264
Needle
Clamp -------------------
asm.
34927 34927 38101 33247 38101 33247
34914
Presser
foot
asm.
32738 32750 32343 33537 33539 33300 33312
32739 32760
32739
Z102 = Z100
