Page 658 - 2017 MASTER CATALOG
P. 658
雅滿桃 YAO HAN INDUSTRIES CO.,LTD.

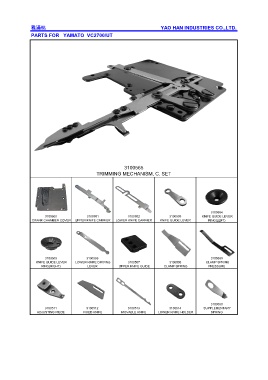

PARTS FOR YAMATO VC2700/UT
3100565
TRIMMING MECHANISM, C. SET
3100504
3100500 3100501 3100502 3100503 KNIFE GUIDE LEVER
CRANK CHAMBER COVER UPPER KNIFE CARRIER LOWER KNIFE CARRIER KNIFE GUIDE LEVER RING(LEFT)
3100505 3100506 3100509
KNIFE GUIDE LEVER LOWER KNIFE DRIVING 3100507 3100508 CLAMP SPRING
RING(RIGHT) LEVER UPPER KNIFE GUIDE CLAMP SPRING PRESSURE
3100560
3100511 3100512 3100513 3100514 SUPPLEMENTARY
ADJUSTING PIECE FIXED KNIFE MOVABLE KNIFE LOWER KNIFE HOLDER SPRING
