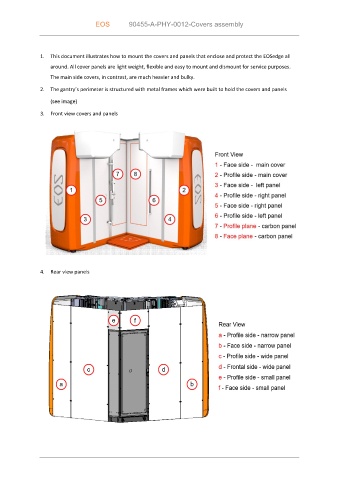

EOS 90455-A-PHY-0012-Covers assembly

1. This document illustrates how to mount the covers and panels that enclose and protect the EOSedge all
around. All cover panels are light weight, flexible and easy to mount and dismount for service purposes.
The main side covers, in contrast, are much heavier and bulky.

2. The gantry’s perimeter is structured with metal frames which were built to hold the covers and panels
(see image)

3. Front view covers and panels

4. Rear view panels
