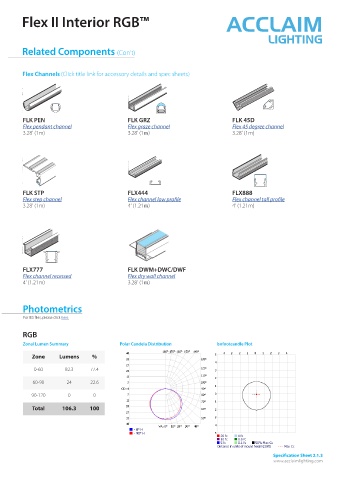

Flex II Interior RGB™ ACCLAIM

LIGHTING

Related Components (Con‘t)

Flex Channels (Click title link for accessory details and spec sheets)

FLK PEN FLK GRZ FLK 45D
Flex pendant channel Flex graze channel Flex 45 degree channel
3.28‘ (1m) 3.28‘ (1m) 3.28‘ (1m)

FLK STP FLX444 FLX888
Flex step channel Flex channel low profile Flex channel tall profile
3.28‘ (1m) 4‘ (1.21m) 4‘ (1.21m)

FLX777 FLK DWM+DWC/DWF
Flex channel recessed Flex dry wall channel
4‘ (1.21m) 3.28‘ (1m)

Photometrics

For IES files, please click here.

RGB

Zonal Lumen Summary Polar Candela Distribution Isofootcandle Plot
Zone Lumens %

0-60 82.3 77.4

60-90 24 22.6

90-120 0 0

Total 106.3 100

Specification Sheet 2.1.3
www.acclaimlighting.com
