JWF-201

TA FAUCET GROUP

PARTS DA

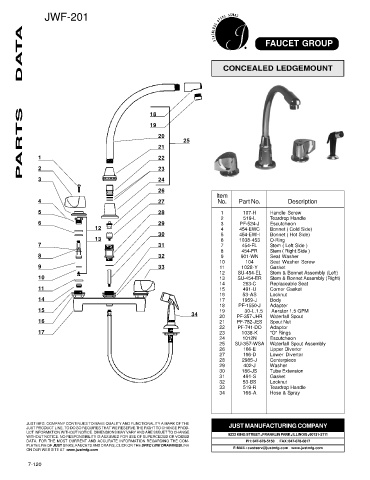

CONCEALED LEDGEMOUNT

18
19
20
25
21
1 22
2 23
3 24

26
Item
4 27 No. Part No. Description
5 28 1 107-H Handle Screw
2 519-L Teardrop Handle
6 29 3 PF-524-J Escutcheon
12 4 454-EWC Bonnet ( Cold Side)
30 5 454-EWH Bonnet ( Hot Side)
13 6 1038-453 O-Ring
7 31 7 454-FL Stem ( Left Side )
8 454-FR Stem ( Right Side )
8 32 9 901-WN Seat Washer
10 104 Seat Washer Screw
9 33 11 1028-Y Gasket
12 SU-454-EL Stem & Bonnet Assembly (Left)
10 13 SU-454-ER Stem & Bonnet Assembly (Right)
14 263-C Replaceable Seat
11 15 491-U Corner Gasket
16 53-AS Locknut
14 17 1959-J Body
18 PF-1550-J Adapter
15 19 30-L.1.5 Aerator 1.5 GPM
34 20 PF-357-JHR Waterfall Spout
16 21 PF-782-JES Spout Nut
22 PF-741-DO Adaptor
17 23 1038-K "O" Rings
24 1012N Escutcheon
25 SU-357-WSA Waterfall Spout Assembly
26 166-E Upper Divertor
27 166-D Lower Divertor
28 2985-J Centerpiece
29 402-J Washer
30 186-JS Tube Extension
31 491-S Gasket
32 53-BS Locknut
33 519-R Teardrop Handle
34 166-A Hose & Spray
