Page 217 - PPAP submission requirements (PPAP check sheet)

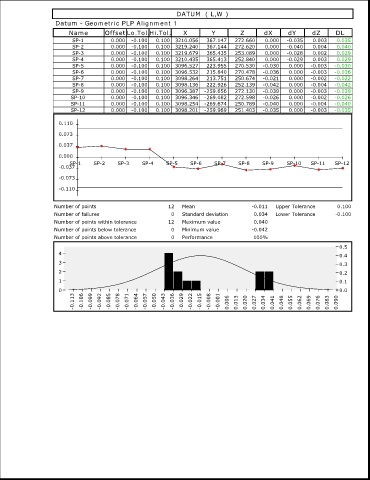

DATUM ( L,W )
Datum - Geometric PLP Alignment 1
Name Offset Lo.Tol.Hi.Tol. X Y Z dX dY dZ DL
SP-1 0.000 -0.100 0.100 3210.056 367.147 272.660 0.000 -0.035 0.003 0.035
SP-2 0.000 -0.100 0.100 3219.240 367.144 272.620 0.000 -0.040 0.004 0.040
SP-3 0.000 -0.100 0.100 3219.679 365.435 253.089 0.000 -0.028 0.002 0.029
SP-4 0.000 -0.100 0.100 3210.435 365.413 252.840 0.000 -0.029 0.003 0.029
SP-5 0.000 -0.100 0.100 3096.527 223.955 270.530 -0.030 0.000 -0.003 -0.030
SP-6 0.000 -0.100 0.100 3096.532 215.840 270.478 -0.036 0.000 -0.003 -0.036
SP-7 0.000 -0.100 0.100 3098.264 213.751 250.674 -0.021 0.000 -0.002 -0.022
SP-8 0.000 -0.100 0.100 3098.136 222.926 252.139 -0.042 0.000 -0.004 -0.042
SP-9 0.000 -0.100 0.100 3096.387 -259.656 272.130 -0.039 0.000 -0.003 -0.039
SP-10 0.000 -0.100 0.100 3096.346 -269.082 272.598 -0.026 0.000 -0.002 -0.026
SP-11 0.000 -0.100 0.100 3098.254 -269.674 250.789 -0.040 0.000 -0.004 -0.040
SP-12 0.000 -0.100 0.100 3098.201 -259.969 251.403 -0.035 0.000 -0.003 -0.035

0.110
0.073
0.037

0.000
SP-1 SP-2 SP-3 SP-4 SP-5 SP-6 SP-7 SP-8 SP-9 SP-10 SP-11 SP-12
-0.037
-0.073
-0.110

Number of points 12 Mean -0.011 Upper Tolerance 0.100
Number of failures 0 Standard deviation 0.034 Lower Tolerance -0.100
Number of points within tolerance 12 Maximum value 0.040
Number of points below tolerance 0 Minimum value -0.042
Number of points above tolerance 0 Performance 100%
0.5
4 0.4
3 0.3
2 0.2
1 0.1
0 0.0
