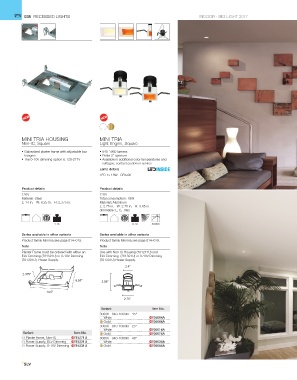

038 RECESSED LIGHTS INDOOR · BIG LIGHT 2017

MINI TRIA HOUSING MINI TRIA
Non-IC, Square Light Engine, Square

• Galvanized plaster frame with adjustable bar • 840-1060 lumens
hangers • Petite 2" aperture
• The 0-10V dimming option is 120-277V • Available in additional color temperatures and
voltages; contact customer service
Lamp details
LED 1x 18W CRI>90

Product details Product details
120V 120V
Material: Steel Total consumption: 18W
L: 14 in. W: 8.25 in. H: 2.375 in. Material: Aluminum
L: 2.75 in. W: 2.75 in. H: 3.85 in.
dimmable: L, C, Triac

1.75 0.74 50000

Series available in other variants Series available in other variants
Product family MiniTria see page 014–019. Product family MiniTria see page 014–019.
Note Note
Plaster Frame must be ordered with either an Use with Non-IC Housing (781271U) and
ELV Dimming (781321U) or 0-10V Dimming ELV Dimming (781321U) or 0-10V Dimming
(781331U) Power Supply. (781331U) Power Supply.
2.4”
2.375”
8.25” 3.85”

14.0”
2.75”

Variant Item No.
3000K 840-1060lm 15°
White 705004A
Gold 705064A
3000K 840-1060lm 25°
White 705014A
Variant Item No. Gold 705074A
Plaster frame, Non-IC 781271U 3000K 840-1060lm 40°
Power Supply, ELV Dimming 781321U White 705024A
Power Supply, 0-10V Dimming 781331U Gold 705084A
