PT.Surya Semesta Cemerlang

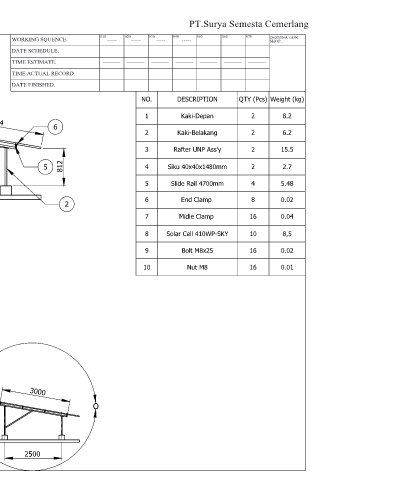

MANUFACTURE DRAWING ORDER NO. TYPE. PART NO. WORKING SQUENCE. 010 ----- 020 ----- 030 ----- 040 ----- 050 060 070 DESTINATION
-----
SHOP.
TITLE. MASTER PART. MATERIAL. CUTTING SIZE. ---- DATE SCHEDULE.
Mounting-10x410WP ----- Assý
DRAWING NO. QTY/SET. SHOP NAME.
----- 1 TIME ESTIMATE.
SPECIAL INSTRUCTION. STANDART PROJECTION REV DATE PREPARED BY APPROVED BY TIME ACTUAL RECORD.
JIS V A 0 03/08/2022 Nur BOWO
JIG/TEMPLATE NO. PAINT COLOUR. DATE FINISHED.
UIC E
NO. DESCRIPTION QTY (Pcs) Weight (kg)
2024
1 Kaki-Depan 2 8.2
2024
6
2 Kaki-Belakang 2 6.2
1515 1270 3 Rafter UNP Ass'y 2 15.5
1 4 830 5 812 4 Siku 40x40x1480mm 2 2.7
5 Slide Rail 4700mm 4 5.48
6 End Clamp 8 0.02
2
DETAIL O 7 Midle Clamp 16 0.04
SCALE 1 : 50
8 Solar Cell 410WP-SKY 10 8,5
9 Bolt M8x25 16 0.02
10 Nut M8 16 0.01
5200
3000
O
3500 2500
