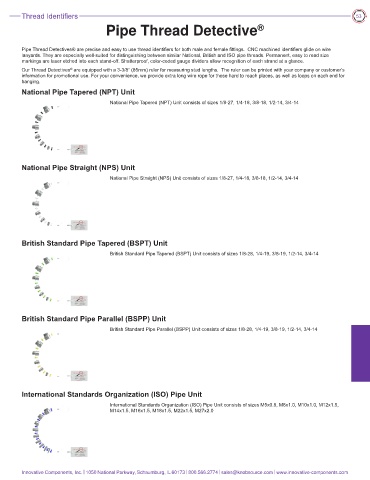

Page 53 - Catalog_Digital_07.08.19

Thread Identifiers 53
Pipe Thread Detective ®

Pipe Thread Detectives® are precise and easy to use thread identifiers for both male and female fittings. CNC machined identifiers glide on wire
lanyards. They are especially well-suited for distinguishing between similar National, British and ISO pipe threads. Permanent, easy to read size
markings are laser etched into each stand-off. Shatterproof, color-coded gauge dividers allow recognition of each strand at a glance.
®
Our Thread Detectives are equipped with a 3-3/8” (85mm) ruler for measuring stud lengths. The ruler can be printed with your company or customer’s
information for promotional use. For your convenience, we provide extra long wire rope for those hard to reach places, as well as loops on each end for
hanging.
National Pipe Tapered (NPT) Unit
National Pipe Tapered (NPT) Unit consists of sizes 1/8-27, 1/4-18, 3/8-18, 1/2-14, 3/4-14

National Pipe Straight (NPS) Unit
National Pipe Straight (NPS) Unit consists of sizes 1/8-27, 1/4-18, 3/8-18, 1/2-14, 3/4-14

British Standard Pipe Tapered (BSPT) Unit

British Standard Pipe Tapered (BSPT) Unit consists of sizes 1/8-28, 1/4-19, 3/8-19, 1/2-14, 3/4-14

British Standard Pipe Parallel (BSPP) Unit
British Standard Pipe Parallel (BSPP) Unit consists of sizes 1/8-28, 1/4-19, 3/8-19, 1/2-14, 3/4-14

International Standards Organization (ISO) Pipe Unit

International Standards Organization (ISO) Pipe Unit consists of sizes M5x0.8, M8x1.0, M10x1.0, M12x1.5,
M14x1.5, M16x1.5, M18x1.5, M22x1.5, M27x2.0
