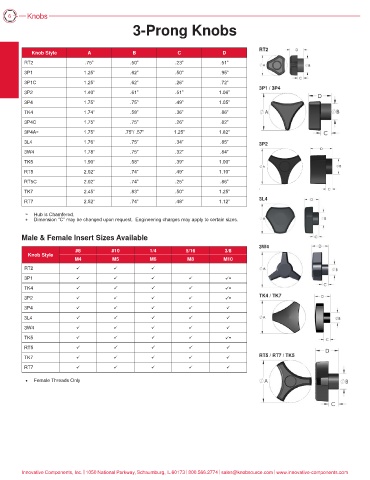

6 Knobs
3-Prong Knobs

RT2
Knob Style A B C D
RT2 .75” .50” .23” .51”
3P1 1.25” .62” .50” .95”
3P1C 1.25” .62” .26” .72”
3P1 / 3P4
3P2 1.40” .61” .51” 1.06”
3P4 1.75” .75” .49” 1.05”
TK4 1.74” .58” .36” .86”
3P4C 1.75” .75” .26” .82”
3P4A» 1.75” .75”/ .57” 1.25” 1.82”

3L4 1.76” .75” .34” .85” 3P2
3W4 1.78” .75” .32” .84”
TK5 1.90” .58” .39” 1.00”
RT5 2.02” .74” .49” 1.10”
RT5C 2.02” .74” .25” .86”
TK7 2.45” .83” .50” 1.25”
3L4
RT7 2.52” .74” .48” 1.12”
» Hub is Chamfered.
* Dimension “C” may be changed upon request. Engineering charges may apply to certain sizes.

Male & Female Insert Sizes Available
3W4
#8 #10 1/4 5/16 3/8
Knob Style
M4 M5 M6 M8 M10
RT2 ü ü ü
3P1 ü ü ü ü ü•
TK4 ü ü ü ü ü•
3P2 ü ü ü ü ü• TK4 / TK7
3P4 ü ü ü ü ü
3L4 ü ü ü ü ü
3W4 ü ü ü ü ü
TK5 ü ü ü ü ü•
RT5 ü ü ü ü ü
TK7 ü ü ü ü ü RT5 / RT7 / TK5
RT7 ü ü ü ü ü

• Female Threads Only
