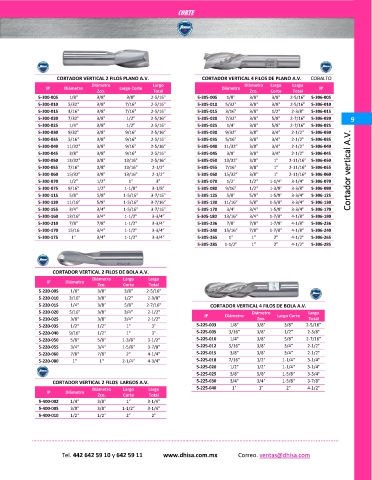

Page 10 - Catalogo DHISA 2020-2021

CORTE

CORTADOR VERTICAL 2 FILOS PLANO A.V. CORTADOR VERTICAL 4 FILOS DE PLANO A.V. COBALTO
Diámetro Largo Diámetro Largo Largo
IP Diámetro Largo Corte Diámetro IP
Zco. Total Zco. Corte Total
5-300-005 1/8" 3/8" 3/8" 2-5/16" 5-305-005 1/8" 3/8" 3/8" 2-5/16" 5-306-005
5-300-010 5/32" 3/8" 7/16" 2-5/16" 5-305-010 5/32" 3/8" 3/8" 2-5/16" 5-306-010
5-300-015 3/16" 3/8" 7/16" 2-5/16" 5-305-015 3/16" 3/8" 1/2" 2-3/8" 5-306-015
5-300-020 7/32” 3/8” 1/2” 2-5/16” 5-305-020 7/32" 3/8" 5/8" 2-7/16" 5-306-020 9
5-300-025 1/4" 3/8" 1/2" 2-5/16" 5-305-025 1/4" 3/8" 5/8" 2-7/16" 5-306-025
5-300-030 9/32” 3/8” 9/16” 2-5/16” 5-305-030 9/32” 3/8” 3/4" 2-1/2” 5-306-030
5-300-035 5/16" 3/8" 9/16" 2-5/16" 5-305-035 5/16" 3/8" 3/4" 2-1/2" 5-306-035
5-300-040 11/32” 3/8” 9/16” 2-5/16” 5-305-040 11/32” 3/8” 3/4" 2-1/2” 5-306-040
5-300-045 3/8" 3/8" 9/16" 2-5/16" 5-305-045 3/8" 3/8" 3/4" 2-1/2" 5-306-045
5-300-050 13/32” 3/8” 13/16” 2-5/16” 5-305-050 13/32” 3/8” 1” 2-11/16” 5-306-050
5-300-055 7/16" 3/8" 13/16" 2-1/2" 5-305-055 7/16" 3/8" 1" 2-11/16" 5-306-055 Cortador vertical A.V.
5-300-060 15/32” 3/8” 13/16” 2-1/2” 5-305-060 15/32” 3/8” 1” 2-11/16” 5-306-060
5-300-070 1/2" 1/2" 1" 3" 5-305-070 1/2" 1/2" 1-1/4" 3-1/4" 5-306-070
5-300-075 9/16" 1/2" 1-1/8" 3-1/8" 5-305-080 9/16" 1/2" 1-3/8" 3-3/8" 5-306-080
5-300-115 5/8" 5/8" 1-5/16" 3-7/16" 5-305-125 5/8" 5/8" 1-5/8" 3-3/4" 5-306-125
5-300-120 11/16” 5/8” 1-5/16” 3-7/16” 5-305-130 11/16” 5/8” 1-5/8” 3-3/4” 5-306-130
5-300-155 3/4" 3/4" 1-5/16" 3-7/16" 5-305-170 3/4" 3/4" 1-5/8" 3-3/4" 5-306-170
5-300-160 13/16” 3/4” 1-1/2” 3-3/4” 5-305-180 13/16” 3/4" 1-7/8” 4-1/8” 5-306-180
5-300-210 7/8" 7/8" 1-1/2" 3-3/4" 5-305-236 7/8" 7/8" 1-7/8" 4-1/8" 5-306-236
5-300-170 15/16 3/4” 1-1/2” 3-3/4” 5-305-240 15/16” 7/8” 1-7/8” 4-1/8” 5-306-240
5-300-175 1" 3/4" 1-1/2" 3-3/4" 5-305-265 1" 1" 2" 4-1/2" 5-306-265
5-305-285 1-1/2" 1" 2" 4-1/2" 5-306-285

CORTADOR VERTICAL 2 FILOS DE BOLA A.V.
Diámetro Largo Largo
IP Diámetro
Zco. Corte Total
5-220-005 1/8" 3/8" 3/8" 2-5/16"
5-220-010 3/16" 3/8" 1/2" 2-3/8"
5-220-015 1/4" 3/8" 5/8" 2-7/16" CORTADOR VERTICAL 4 FILOS DE BOLA A.V.
5-220-020 5/16" 3/8" 3/4" 2-1/2" Diámetro Largo
IP Diámetro Largo Corte
5-220-025 3/8" 3/8" 3/4" 2-1/2" Zco. Total
5-220-035 1/2" 1/2" 1" 3" 5-225-003 1/8" 3/8" 3/8" 2-5/16"
5-220-040 9/16" 1/2" 1" 3" 5-225-005 3/16" 3/8" 1/2" 2-3/8"
5-220-050 5/8" 5/8" 1-3/8" 3-1/2" 5-225-010 1/4" 3/8" 5/8" 2-7/16"
5-220-055 3/4" 3/4" 1-5/8" 3-7/8" 5-225-012 5/16" 3/8" 3/4" 2-1/2"
5-220-060 7/8" 7/8" 2" 4-1/4" 5-225-015 3/8" 3/8" 3/4" 2-1/2"
5-220-080 1" 1" 2-1/4" 4-3/4" 5-225-018 7/16" 1/2" 1-1/4" 3-1/4"
5-225-020 1/2" 1/2" 1-1/4" 3-1/4"
5-225-025 5/8" 5/8" 1-5/8" 3-3/4"
CORTADOR VERTICAL 2 FILOS LARGOS A.V. 5-225-030 3/4" 3/4" 1-5/8" 3-7/8"
Diámetro Largo Largo 5-225-040 1" 1" 2" 4-1/2"
IP Diámetro
Zco. Corte Total
5-400-002 1/4” 3/8” 1” 3-1/4”
5-400-005 3/8” 3/8” 1-1/2” 3-1/4”
5-400-010 1/2" 1/2" 2” 2”

………………………………………………………………………………………………………………………………………………………..............................
