Page 71 - TCD Catalog 2017

TCD Parts Inc.

ADS Dishmachine Parts

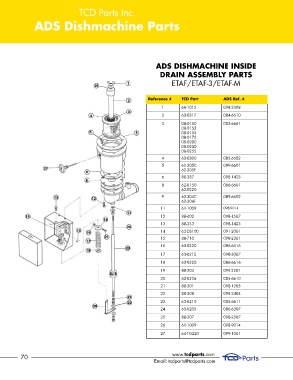

ADS DISHMACHINE INSIDE
DRAIN ASSEMBLY PARTS
ETAF/ETAF-3/ETAF-M

Reference # TCD Part ADS Ref. #
1 66-1012 098-2308
2 63-0317 084-6610

3 DB-0150 083-6601
DB-0153
DB-0155
DB-0175
DB-0200
DB-0250
DB-0255
4 63-0300 085-6602
5 62-305C 089-6601
62-305F
6 88-337 098-1423
8 62-0150 086-6601
62-0220
9 62-304C 089-6602
62-304F
11 61-1009 098-9014
12 88-402 098-1507
13 88-333 098-1423
14 63-DS100 091-2001
15 88-710 098-2301
16 63-0220 086-6616

17 63-0215 098-3007
18 63-0220 086-6616
19 88-204 098-2201
20 63-0226 085-6610
21 88-201 098-1205
22 88-308 098-2404
23 63-0210 085-6611
24 63-0205 086-6307
25 88-307 098-2507
26 61-1009 098-9014
27 64-TG220 099-1001
