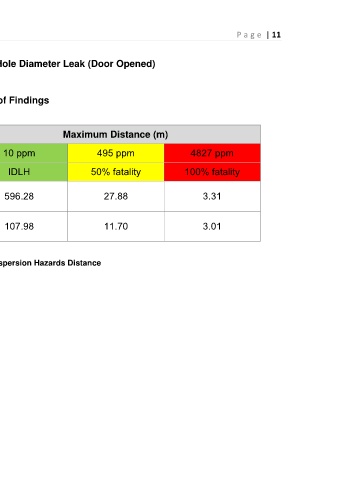

3.0 KT1 Chlorine Cylinder 10mm Hole Diameter Leak (Door Opened)

Summary of Findings

Maximum Distance (m)

Hazardous Event Scenario Weather 10 ppm 495 ppm 4827 ppm

IDLH 50% fatality 100% fatality
1 m/s
Chlorine Cylinder 10mm Class F 596.28 27.88 3.31
Hole Diameter Leak (Door
Opened) 5 m/s 107.98 11.70 3.01
Class D

Table 3.0: Chlorine Gas Dispersion Hazards Distance
