P a ge | 26

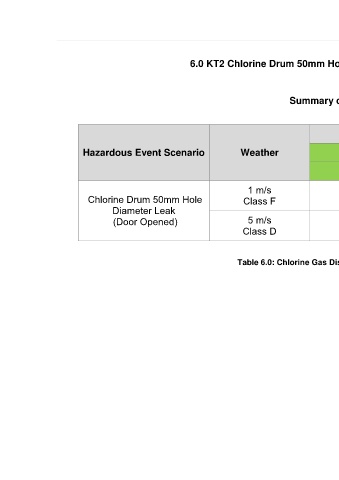

6.0 KT2 Chlorine Drum 50mm Hole Diameter Leak (Door Opened)

Summary of Findings

Maximum Distance (m)

Hazardous Event Scenario Weather 10 ppm 495 ppm 4827 ppm

IDLH 50% fatality 100% fatality
1 m/s
Chlorine Drum 50mm Hole Class F 2888.30 214.53 32.11
Diameter Leak
(Door Opened) 5 m/s 641.24 66.83 13.99
Class D

Table 6.0: Chlorine Gas Dispersion Hazards Distance
