P a ge | 31

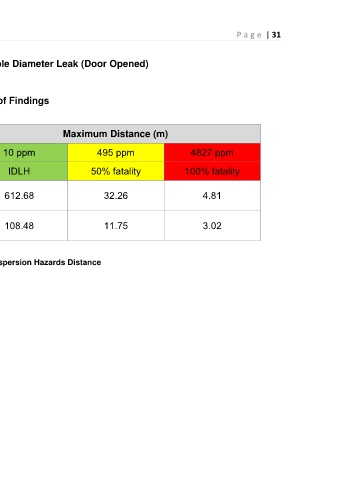

7.0 KT2 Chlorine Drum 10mm Hole Diameter Leak (Door Opened)

Summary of Findings

Maximum Distance (m)

Hazardous Event Scenario Weather 10 ppm 495 ppm 4827 ppm

IDLH 50% fatality 100% fatality
1 m/s
Chlorine Drum 10mm Hole Class F 612.68 32.26 4.81
Diameter Leak
(Door Opened) 5 m/s 108.48 11.75 3.02
Class D

Table 7.0: Chlorine Gas Dispersion Hazards Distance
