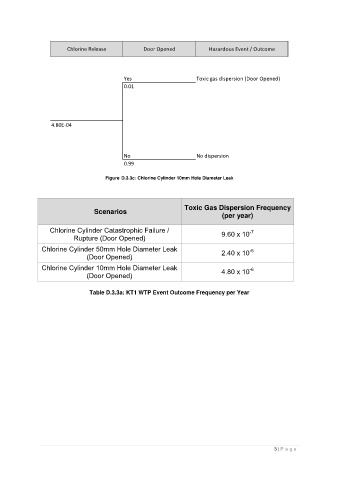

Chlorine Release Door Opened Hazardous Event / Outcome
Yes Toxic gas dispersion (Door Opened)
0.01
4.80E-04
No No dispersion
0.99
Figure D.3.3c: Chlorine Cylinder 10mm Hole Diameter Leak
Toxic Gas Dispersion Frequency
Scenarios
(per year)
Chlorine Cylinder Catastrophic Failure / -7
Rupture (Door Opened) 9.60 x 10
Chlorine Cylinder 50mm Hole Diameter Leak -6
(Door Opened) 2.40 x 10
Chlorine Cylinder 10mm Hole Diameter Leak -6
(Door Opened) 4.80 x 10
Table D.3.3a: KT1 WTP Event Outcome Frequency per Year
