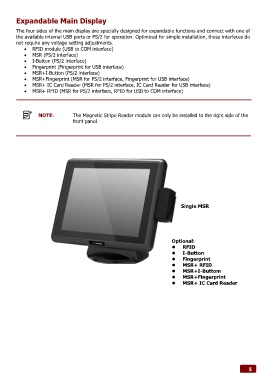

Expandable Main Display


        The four sides of the main display are specially designed for expandable functions and connect with one of
        the available internal USB ports or PS/2 for operation. Optimized for simple installation, these interfaces do
        not require any voltage setting adjustments.
              RFID module (USB to COM interface)
              MSR (PS/2 interface)
              I-Button (PS/2 interface)
              Fingerprint (Fingerprint for USB interface)
              MSR+I-Button (PS/2 interface)
              MSR+Fingerprint (MSR for PS/2 interface, Fingerprint for USB interface)
              MSR+ IC Card Reader (MSR for PS/2 interface, IC Card Reader for USB interface)
              MSR+ RFID (MSR for PS/2 interface, RFID for USB to COM interface)



                  NOTE:          The Magnetic Stripe Reader module can only be installed to the right side of the
                                 front panel.



















                                                                                 Single MSR








                                                                             Optional:
                                                                                 RFID
                                                                                 I-Button
                                                                                 Fingerprint
                                                                                 MSR+ RFID
                                                                                 MSR+I-Buttom
                                                                                 MSR+Fingerprint
                                                                                 MSR+ IC Card Reader
