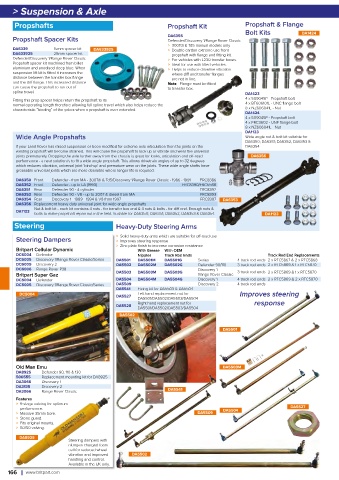

Page 162 - JGS4x4 CATALOGUE

> Suspension & Axle

Propshafts Propshaft Kit Propshaft & Flange
Bolt Kits DA1424
Propshaft Spacer Kits DA6355
Defender/Discovery 1/Range Rover Classic
> 300Tdi & Td5 manual models only
DA6339 15mm spacer kit DA633925 > Double cardan extreme use front
DA633925 25mm spacer kit propshaft with flange and fitting kit.
Defender/Discovery 1/Range Rover Classic > For vehicles with L230 transfer boxes.
Propshaft spacer kit machined from billet > Ideal for use with lifted vehicles.
aluminium and anodised deep blue. When > Helps to reduce driveline vibration
suspension lift kit is fitted it increases the where diff and transfer flanges
distance between the transfer box flange are not in-line.
and the diff flange. This increased distance Note - Flange must be fitted
can cause the propshaft to run out of to transfer box.
spline travel. DA1423
Fitting this prop spacer helps return the propshaft to its 4 x 509045P - Propshaft bolt
normal operating length therefore allowing full spline travel which also helps reduce the 4 x BT606101L - UNC flange bolt
characteristic “binding” of the yokes when a propshaft is over extended. 8 x NZ606041L - Nut
DA1424
4 x 509045P - Propshaft bolt
4 x FRC3602 - UNF flange bolt
8 x NZ606041L - Nut
DA1123
Wide Angle Propshafts Wide angle nut & bolt kit suitable for
DA6350; DA6351; DA6352, DA6353 &
If your Land Rover has raised suspension or been modified for extreme axle articulation then the joints on the DA6354
existing propshaft will become strained. This will cause the propshaft to lock up or vibrate and wear the universal
joints prematurely. Dropping the axle further away from the chassis is great for looks, articulation and off-road DA6356
performance - a neat solution is to fit a wide angle propshaft. This allows drivetrain angles of up to 32 degrees
which reduces vibration, universal joint ‘bind-up’ and premature wear on the joints. These wide angle shafts have
greasable universal joints which are more desirable where longer life is required.
DA6350 Front Defender - from MA - 300Tdi & Td5/Discovery 1/Range Rover Classic - 1986 - 1991 FRC8386
DA6352 Front Defender - up to LA (1993) FRC8390/FRC5566
DA6351 Rear Defender 90 - 4 cylinder FRC8392
DA6353 Rear Defender 90 - V8 - up to 2007 & diesel from MA FRC8393
DA6354 Rear Discovery 1 - 1989 - 1994 & V8 from 1997 FRC8387 DA6353
DA6356 Replacement heavy-duty universal joint for wide angle propshafts
Nut & bolt kit - each kit contains 4 nuts - for transfer box end & 4 nuts & bolts - for diff end. Enough nuts &
DA1123
bolts to make propshaft repair out in the field. Suitable for DA6350; DA6351; DA6352, DA6353 & DA6354. DA1123
Steering Heavy-Duty Steering Arms

Steering Dampers > Solid heavy-duty arms which are suitable for off-road use
> Improves steering response
> Zinc plate finish to increase corrosion resistance
Britpart Cellular Dynamic With Grease With OEM
DC6004 Defender Nipples Track Rod Ends Track Rod End Replacements
DC6005 Discovery 1/Range Rover Classic/Series DA5501 DA5501M DA5501G Series 4 track rod ends 2 x RTC5867 & 2 x RTC5868
DC6009 Discovery 2 DA5502 DA5502M DA5502G Defender 90/110 3 track rod ends 2 x RTC5869 & 1 x RTC5870
DC6006 Range Rover P38 Discovery 1 3 track rod ends 2 x RTC5869 & 1 x RTC5870

Britpart Super Gaz DA5503 DA5503M DA5503G Range Rover Classic

DC5004 Defender DA5504 DA5504M DA5504G Discovery 1 4 track rod ends 2 x RTC5869 & 2 x RTC5870
DC5005 Discovery 1/Range Rover Classic/Series DA5509 Discovery 2 4 track rod ends
DA5541 Fixing kit for DA5503 & DA5504
DC5004 Left hand replacement nut for Improves steering
DA5527
DA5501/DA5502/DA5503/DA5504
Right hand replacement nut for response
DA5528
DA5501/DA5502/DA5503/DA5504
DA5502
DA5501

Old Man Emu DA5503M
DA8925 Defender 90, 110 & 130
500555 Replacement mounting kit for DA8925
DA3066 Discovery 1
DA3135 Discovery 2
DA3066 Range Rover Classic DA5541
Features
> 9 stage valving for optimum
performance. DA5504 DA5527
> Massive 35mm bore. DA5509
> Stone guard.
> Fits original mounts.
> 50/50 valving.
DA8925
Steering dampers with
nitrogen charged foam
cell for reduced wheel
vibration and improved DA5502
handling and control.
Available in the UK only.
