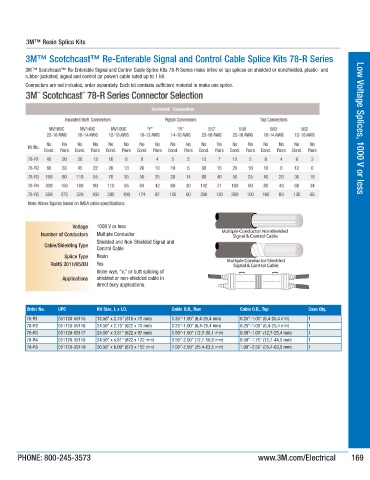

3M™ Resin Splice Kits

3M™ Scotchcast™ Re-Enterable Signal and Control Cable Splice Kits 78-R Series

3M™ Scotchcast™ Re-Enterable Signal and Control Cable Splice Kits 78-R Series make inline or tap splices on shielded or nonshielded, plastic- and
rubber-jacketed, signal and control (or power) cable rated up to 1 kV.
Connectors are not included, order separately. Each kit contains sufficient material to make one splice. Low Voltage Splices,

Voltage 1000 V or less 1000 V or less
Number of Conductors Multiple Conductor
Shielded and Non-Shielded Signal and
Cable/Shielding Type
Control Cable
Splice Type Resin
RoHS 2011/65/EU Yes
Inline wye, “x,” or butt splicing of
Applications shielded or non-shielded cable in
direct bury applications.

Order No. UPC Kit Size, L x I.D. Cable O.D., Run Cable O.D., Tap Case Qty.
78-R1 051128-55115 12.50” x 2.75” (318 x 70 mm) 0.25”-1.00” (6,4-25,4 mm) 0.25”-1.00” (6,4-25,4 mm) 1
78-R2 051128-55116 24.50” x 2.75” (622 x 70 mm) 0.25”-1.00” (6,4-25,4 mm) 0.25”-1.00” (6,4-25,4 mm) 1
78-R3 051128-55117 24.50” x 3.81” (622 x 97 mm) 0.50”-1.50” (12,7-38,1 mm) 0.50”-1.00” (12,7-25,4 mm) 1
78-R4 051128-55118 24.50” x 4.81” (622 x 122 mm) 0.50”-2.00” (12,7-50,8 mm) 0.50”-1.75” (12,7-44,5 mm) 1
78-R5 051128-55119 26.50” x 6.00” (673 x 152 mm) 1.00”-2.50” (25,4-63,5 mm) 1.00”-2.50” (25,4-63,5 mm) 1

PHONE: 800-245-3573 www.3M.com/Electrical 169
