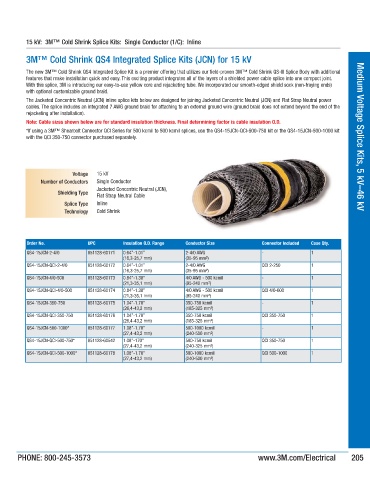

15 kV: 3M™ Cold Shrink Splice Kits: Single Conductor (1/C): Inline

3M™ Cold Shrink QS4 Integrated Splice Kits (JCN) for 15 kV

The new 3M™ Cold Shrink QS4 Integrated Splice Kit is a premier offering that utilizes our field-proven 3M™ Cold Shrink QS-III Splice Body with additional
features that make installation quick and easy. This exciting product integrates all of the layers of a shielded power cable splice into one compact joint.
With this splice, 3M is introducing our easy-to-use yellow core and rejacketing tube. We incorporated our smooth-edged shield sock (non-fraying ends)
with optional customizable ground braid.
The Jacketed Concentric Neutral (JCN) inline splice kits below are designed for joining Jacketed Concentric Neutral (JCN) and Flat Strap Neutral power
cables. The splice includes an integrated 7 AWG ground braid for attaching to an external ground wire (ground braid does not extend beyond the end of the
rejacketing after installation). Medium Voltage Splice Kits,
Note: Cable sizes shown below are for standard insulation thickness. Final determining factor is cable insulation O.D.
*If using a 3M™ Shearbolt Connector QCI Series for 500 kcmil to 500 kcmil splices, use the QS4-15JCN-QCI-500-750 kit or the QS4-15JCN-500-1000 kit
with the QCI 350-750 connector purchased separately.

Voltage 15 kV
Number of Conductors Single Conductor
Jacketed Concentric Neutral (JCN), 5 kV–46 kV
Shielding Type
Flat Strap Neutral Cable
Splice Type Inline
Technology Cold Shrink

Order No. UPC Insulation O.D. Range Conductor Size Connector Included Case Qty.
QS4-15JCN-2-4/0 051128-60171 0.64”-1.01” 2-4/0 AWG - 1
(16,3-25,7 mm) (35-95 mm²)
QS4-15JCN-QCI-2-4/0 051128-60172 0.64”-1.01” 2-4/0 AWG QCI 2-250 1
(16,3-25,7 mm) (35-95 mm²)
QS4-15JCN-4/0-500 051128-60173 0.84”-1.38” 4/0 AWG - 500 kcmil - 1
(21,3-35,1 mm) (95-240 mm²)
QS4-15JCN-QCI-4/0-500 051128-60174 0.84”-1.38” 4/0 AWG - 500 kcmil QCI 4/0-600 1
(21,3-35,1 mm) (95-240 mm²)
QS4-15JCN-350-750 051128-60175 1.04”-1.70” 350-750 kcmil - 1
(26,4-43,2 mm) (185-325 mm²)
QS4-15JCN-QCI-350-750 051128-60176 1.04”-1.70” 350-750 kcmil QCI 350-750 1
(26,4-43,2 mm) (185-325 mm²)
QS4-15JCN-500-1000* 051128-60177 1.08”-1.70” 500-1000 kcmil - 1
(27,4-43,2 mm) (240-500 mm²)
QS4-15JCN-QCI-500-750* 051128-60542 1.08”-170” 500-750 kcmil QCI 350-750 1
(27,4-43,2 mm) (240-325 mm²)
QS4-15JCN-QCI-500-1000* 051128-60178 1.08”-1.70” 500-1000 kcmil QCI 500-1000 1
(27,4-43,2 mm) (240-500 mm²)
