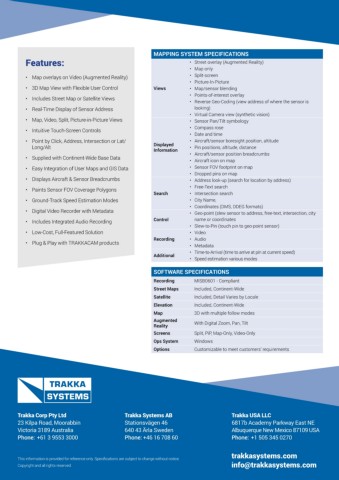

MAPPING SYSTEM SPECIFICATIONS
Features: • Street overlay (Augmented Reality)
• Map only
• Map overlays on Video (Augmented Reality) • Split-screen
• Picture-In-Picture
• 3D Map View with Flexible User Control Views • Map/sensor blending
• Points-of-interest overlay
• Includes Street Map or Satellite Views
• Reverse Geo-Coding (view address of where the sensor is
• Real-Time Display of Sensor Address looking)
• Virtual Camera view (synthetic vision)
• Map, Video, Split, Picture-in-Picture Views • Sensor Pan/Tilt symbology
• Intuitive Touch-Screen Controls • Compass rose
• Date and time
• Point by Click, Address, Intersection or Lat/ • Aircraft/sensor boresight position, altitude
Long/Alt Displayed • Pin positions, altitude, distance
Information
• Supplied with Continent-Wide Base Data • Aircraft/sensor position breadcrumbs
• Aircraft icon on map
• Easy Integration of User Maps and GIS Data • Sensor FOV footprint on map
• Dropped pins on map
• Displays Aircraft & Sensor Breadcrumbs • Address look-up (search for location by address)

• Paints Sensor FOV Coverage Polygons • Free-Text search
Search • Intersection search
• Ground-Track Speed Estimation Modes • City Name,
• Coordinates (DMS, DDEG formats)
• Digital Video Recorder with Metadata • Geo-point (slew sensor to address, free-text, intersection, city
• Includes Integrated Audio Recording Control name or coordinates
• Slew-to-Pin (touch pin to geo-point sensor)
• Low-Cost, Full-Featured Solution • Video
Recording • Audio
• Plug & Play with TRAKKACAM products
• Metadata
• Time-to-Arrival (time to arrive at pin at current speed)
Additional
• Speed estimation various modes
SOFTWARE SPECIFICATIONS
Recording MISB0601 - Compliant
Street Maps Included, Continent-Wide
Satellite Included, Detail Varies by Locale
Elevation Included, Continent-Wide
Map 3D with multiple follow modes
Augmented With Digital Zoom, Pan, Tilt
Reality
Screens Split, PiP, Map-Only, Video-Only
Ops System Windows
Options Customizable to meet customers’ requirements
