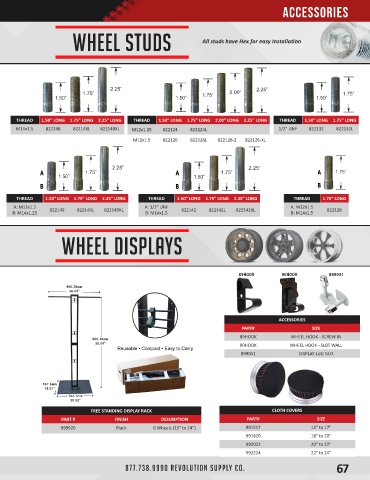

Page 67 - 2020 Coyote Wheel Accessoires Catalog

Accessories

WHEEL STUDS All studs have Hex for easy Installation

THREAD 1.50” LONG 1.75” LONG 2.25” LONG THREAD 1.50” LONG 1.75” LONG 2.00” LONG 2.25” LONG THREAD 1.50” LONG 1.75” LONG
M14x1.5 822148 822148L 822148XL M12x1.25 822124 822124L 1/2” UNF 822132 822132L
M12x1.5 822126 822126L 822126-2 822126-XL

THREAD 1.50” LONG 1.75” LONG 2.25” LONG THREAD 1.50” LONG 1.75” LONG 2.25” LONG THREAD 1.75” LONG
A: M12x1.5 A: 1/2” UNF A: M12X1.5
B: M14x1.25 822149 822149L 822149XL B: M14x1.5 822142 822142L 822142XL B: M14x1.5 822128

WHEEL displays

89HOOK 90HOOK 899041

966.30mm
38.04"

ACCESSORIES
PART# SIZE
89HOOK WHEEL HOOK - SCREW IN
966.30mm
38.04" 90HOOK WHEEL HOOK - SLOT WALL
899041 DISPLAY LUG NUT

457.6mm
18.01"
762.7mm
30.02"
FREE STANDING DISPLAY RACK CLOTH COVERS
PART # FINISH DESCRIPTION PART# SIZE
999920 Black 6 Wheels (13” to 24”) 991517 15” to 17”
991820 18” to 20”
992022 20” to 22”
992224 22” to 24”

877.738.9990 REVOLUTION SUPPLY CO. 67
