Mohd Naim / JOJAPS – JOURNAL ONLINE JARINGAN PENGAJIAN SENI BINA 0137300545

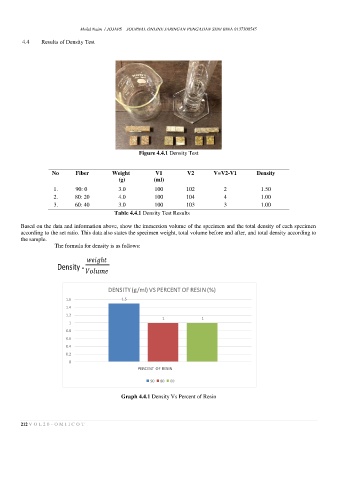

4.4 Results of Density Test
Figure 4.4.1 Density Test
No Fiber Weight V1 V2 V=V2-V1 Density
(g) (ml)
1. 90: 0 3.0 100 102 2 1.50
2. 80: 20 4.0 100 104 4 1.00
3. 60: 40 3.0 100 103 3 1.00
Table 4.4.1 Density Test Results
Based on the data and information above, show the immersion volume of the specimen and the total density of each specimen
according to the set ratio. This data also states the specimen weight, total volume before and after, and total density according to
the sample.
The formula for density is as follows:
ℎ
Density =
DENSITY (g/ml) VS PERCENT OF RESIN (%)
1.6 1.5
1.4
1.2 1 1
1
0.8
0.6
0.4
0.2
0
PERCENT OF RESIN
90 80 60
Graph 4.4.1 Density Vs Percent of Resin
212 V O L 2 0 - O M I I C O T
