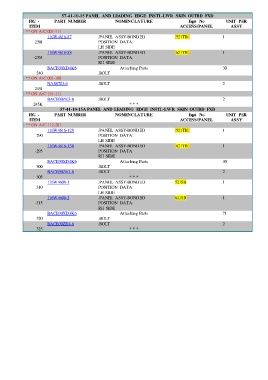

Page 49 - Door 521

57-41-10-15 PANEL AND LEADING EDGE INSTL-LWR SKIN OUTBD FXD
FIG - PART NUMBER NOMENCLATURE Eqpt No UNIT PER
ITEM ACCESS/PANEL ASSY
** ON A/C 001-111
116W4616-87 .PANEL ASSY-BONDED 521TB 1
230J POSITION DATA:
LH SIDE
116W4616-88 .PANEL ASSY-BONDED 621TB 1
-235J POSITION DATA:
RH SIDE
BACB30XD4K6 Attaching Parts 30
240 .BOLT
** ON A/C 001-100
NAS8703-6 .BOLT 2
245J
** ON A/C 101-111
BACB30ZE3-6 .BOLT 2
245K * * *
57-41-10-15A PANEL AND LEADING EDGE INSTL-LWR SKIN OUTBD FXD
FIG - PART NUMBER NOMENCLATURE Eqpt No UNIT PER
ITEM ACCESS/PANEL ASSY
** ON A/C 112-201
116W4616-129 .PANEL ASSY-BONDED 521TB 1
290 POSITION DATA:
LH SIDE
116W4616-130 .PANEL ASSY-BONDED 621TB 1
-295 POSITION DATA:
RH SIDE
BACB30XD4K6 Attaching Parts 30
300 .BOLT
BACB30ZE3-6 .BOLT 2
305 * * *
116W4608-1 .PANEL ASSY-BONDED 521SB 1
310 POSITION DATA:
LH SIDE
116W4608-2 .PANEL ASSY-BONDED 621SB 1
-315 POSITION DATA:
RH SIDE
BACB30XD3K6 Attaching Parts 71
320 .BOLT
BACB30ZE4-6 .BOLT 2
325 * * *
