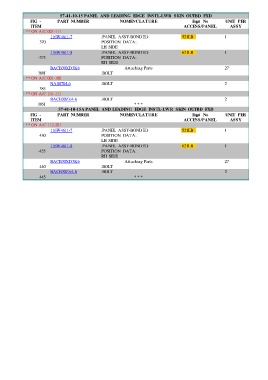

Page 28 - DOOR 521

57-41-10-15 PANEL AND LEADING EDGE INSTL-LWR SKIN OUTBD FXD
FIG - PART NUMBER NOMENCLATURE Eqpt No UNIT PER
ITEM ACCESS/PANEL ASSY
** ON A/C 001-111
116W4611-7 .PANEL ASSY-BONDED 521LB 1
370 POSITION DATA:
LH SIDE
116W4611-8 .PANEL ASSY-BONDED 621LB 1
-375 POSITION DATA:
RH SIDE
BACB30XD3K6 Attaching Parts 27
380J .BOLT
** ON A/C 001-100
NAS8704-6 .BOLT 2
385
** ON A/C 101-111
BACB30ZE4-6 .BOLT 2
385J * * *
57-41-10-15A PANEL AND LEADING EDGE INSTL-LWR SKIN OUTBD FXD
FIG - PART NUMBER NOMENCLATURE Eqpt No UNIT PER
ITEM ACCESS/PANEL ASSY
** ON A/C 112-201
116W4611-7 .PANEL ASSY-BONDED 521LB 1
430 POSITION DATA:
LH SIDE
116W4611-8 .PANEL ASSY-BONDED 621LB 1
-435 POSITION DATA:
RH SIDE
BACB30XD3K6 Attaching Parts 27
440 .BOLT
BACB30ZE4-6 .BOLT 2
445 * * *
