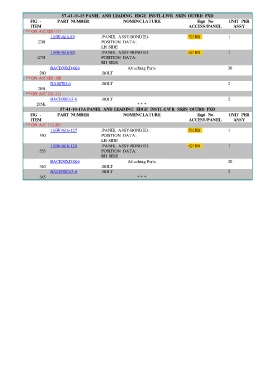

Page 43 - DOOR 521

57-41-10-15 PANEL AND LEADING EDGE INSTL-LWR SKIN OUTBD FXD
FIG - PART NUMBER NOMENCLATURE Eqpt No UNIT PER
ITEM ACCESS/PANEL ASSY
** ON A/C 001-111
116W4616-89 .PANEL ASSY-BONDED 521RB 1
270J POSITION DATA:
LH SIDE
116W4616-90 .PANEL ASSY-BONDED 621RB 1
-275J POSITION DATA:
RH SIDE
BACB30XD4K6 Attaching Parts 30
280 .BOLT
** ON A/C 001-100
NAS8703-6 .BOLT 2
285J
** ON A/C 101-111
BACB30ZE3-6 .BOLT 2
285K * * *
57-41-10-15A PANEL AND LEADING EDGE INSTL-LWR SKIN OUTBD FXD
FIG - PART NUMBER NOMENCLATURE Eqpt No UNIT PER
ITEM ACCESS/PANEL ASSY
** ON A/C 112-201
116W4616-127 .PANEL ASSY-BONDED 521RB 1
330 POSITION DATA:
LH SIDE
116W4616-128 .PANEL ASSY-BONDED 621RB 1
-335 POSITION DATA:
RH SIDE
BACB30XD4K6 Attaching Parts 30
340 .BOLT
BACB30ZE3-6 .BOLT 2
345 * * *
