BREDI ®

Accessories FACADE

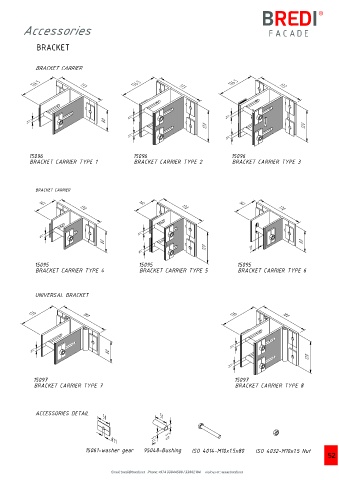

BRACKET

BRACKET CARRIER

136.5 173 136.5 173 136.5 173

80 11 11
11
120 120
11
11

15096 15096 15096
BRACKET CARRIER TYPE 1 BRACKET CARRIER TYPE 2 BRACKET CARRIER TYPE 3

BRACKET CARRIER

85 170 85 170 85 170

11
11
80 80
120 11
11

15095 15095 15095
BRACKET CARRIER TYPE 4 BRACKET CARRIER TYPE 5 BRACKET CARRIER TYPE 6

UNIVERSAL BRACKET

136 180 136 180

11
80
11
120
11

15097 15097
BRACKET CARRIER TYPE 7 BRACKET CARRIER TYPE 8

ACCESSORIES DETAIL
50 51

14.5
Ø11 Ø11.5
15061-washer gear 95048-Bushing ISO 4014-M10x1.5x80 ISO 4032-M10x1.5 Nut
52
