TRAVINA TRAVINA

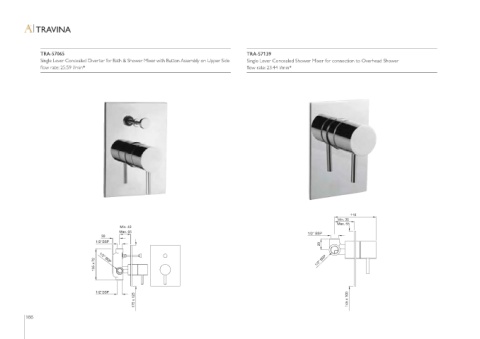

TRA-57065 TRA-57139 TRA-57119 TRA-57277
Single Lever Concealed Diverter for Bath & Shower Mixer with Button Assembly on Upper Side Single Lever Concealed Shower Mixer for connection to Overhead Shower Single Lever Wall Mixer with Hand Shower Provision but without Hand Shower Single Lever 3-Hole Bath Tub Mounted Mixer with Spout, Hand Shower and Diverter
flow rate: 25.59 l/min* flow rate: 23.44 l/min* flow rate: 10.69 l/min* flow rate: 12.32 l/min*

150 ±10 Ø24
110 Ø 36 hole
1/2" BSP
Min. 30 155 Ø55
Max. 55 Ø55
Min. 40 Ø60 Ø55
Max. 65 1/2" BSP
30
Ø 33 Hole Ø 28 Hole
1/2"BSP
29
135 x 72 1/2" BSP 1/2" BSP 75 1/2" BSP

177 15

1/2" BSP
1/2"BSP
175 x 125 145 x 100

166 167
